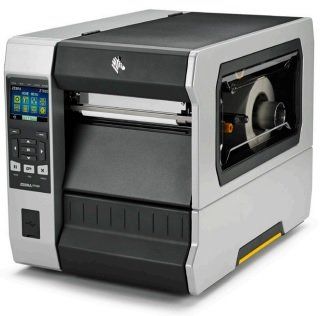

Zebra ZT620

The Zebra ZT620 combines rugged durability and exceptional performance on a user-friendly, future-ready platform. The Zebra Xi series next-generation workhorse is designed to help you navigate the rapidly evolving business technology landscape.

Get a Quote >>

Availability: Call for availability

Includes Full Manufacturer's Warranty

Product Information

More Standard Features

Print Methods: Thermal transfer and direct thermal printing

Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window

Side-loading supplies path for simplified media and ribbon loading

Thin film printhead with E™ Element Energy™ for superior print quality

Communications: USB 2.0,high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0

Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance

Simplified icon menu navigation system categorizes settings into logical groups of functions

Printer Specifications

Resolution: 203 dpi/ 8 dots per mm

300 dpi/ 12 dots per mm (optional)

600 dpi/ 24 dots per mm (optional for ZT610 only)

Memory: 1 GB RAM memory

2 GB on-board linear Flash memory

Maximum Print Width: ZT610: 4.09″/104 mm

ZT620: 6.6″/168 mm

Maximum Print Speed: ZT610: 14 ips/356 mm per sec

ZT620: 12 ips/305 mm per sec

Media Sensors: Dual media sensors (transmissive and reflective)

Maximum Continuous Print Length:

ZT610

203 dpi: 150″/3810 mm

300 dpi: 130″/3302 mm

600 dpi: 30″/762 mm

ZT620

203 dpi: 150″/3810 mm

300 dpi: 100″/2540 mm

Media Characteristics

Media Width

ZT610

1.00″/25.4 mm to 4.5″/114 mm tear/cutter

1.00″/25.4 mm to 4.25″/108 mm peel/rewind

ZT620

2.00″/51 mm to 7.0″/178 mm tear/cutter

2.00″/51 mm to 6.75″/171 mm peel/rewind

Maximum Media Roll Size: 8″/203 mm O.D. on a 3″/76mm I.D. core

Thickness: 0.0023″/.058 mm to 0.010″/0.25 mm

Media Types: Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length: 1476’/450mm

Width: ZT610: 2.00″/51 mm to 4.33″/110 mm

ZT620: 2.00″/51 mm to 6.85″/174 mm

Core: 1.0″/25.4 mm I.D.

Operating Characteristics

Environmental:

Operating Temperature:

Thermal transfer= 40°F to 104°F/5°C to 40°C

Direct thermal= 32°F to 104°F/0°C to 40°C

Operating Humidity: 20% to 85% non-condensing

Storage/Transportation Temperature: -22°F to 140°F/-30°C to 60°C

Storage Humidity: 20% to 85% non-condensing

Electrical

Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 watts

ENERGY STAR qualified

Agency Approvals

IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3

cTUVus CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC,CU,BSMI,KCC,SABS,IN-Metro

Physical Characteristics

Length: ZT610: 19.88″/505 mm ZT620: 19.88″/505 mm

Width: ZT610: 10.56″/268.2 mm ZT620: 13.44″/341.45 mm

Height: ZT610: 15.58″/395.68 mm ZT620: 15.58″/395.68 mm

Weight: ZT610: 50 lbs/22.7 kg ZT620: 57.4 lbs/26 kg

Software Tools

Link-OS Solutions

Document Design- Quickly design a customized print solution using your business data and Zebra’s intuitive plug-and-print design tools.

Device Integration- Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.

Device Management- Manage your print operations locally and globally with Zebra’s suite of device management tools.

Developer Tools- Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.

Web View

Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.

Alert

Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired or wireless device to minimize downtime.

Firmware

ZBI 2.0™- Optional powerful programming language that lets printers rn stand-alone applications, connect to peripherals and much more.

ZPL and ZPL II®- Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all zebra printers.

XML-enabled Printing- allows XML communications for barcode label printing.

Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsetsA/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code

2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

16 resident expendable ZPL II bitmap and two resident scalable ZPL fonts

Asian and other international scalable and smooth bitmapped fonts

Unicode™: For multi-language printing

Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats

IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control

Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0

32 MB user available DRAM

512 MB user available on-board Flash

Options and Accessories

Connectivity

Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

Media Handling

Rewind: Internally rewinds a full roll of printed labels on a 3″ core, or peels and rewinds liner

Cutter: Front-mount guillotine cutter and catch tray

1″ I.D. Core media supply hanger

Ink-side in ribbon supply spindle

RFID

Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols

Integrated RFID system is user-upgradable in the field and available on both 4″ and 6″ models

Adaptive Encoding Technology automatically selects optimum encode settings

Keyboard Display Unit

ZKDU™ keyboard display units for stand-alone printing applications

*Specifications are subject to change without notice

Zebra Link-OS

Link-OS is the one-of-a-kind enterprise printer operating system found in Zebra’s latest line of printers. Featuring advanced connectivity capabilities, extensive device management and advanced privacy controls, no other printers deliver this level of intelligence and innovation. Printers running Link-OS are supported by a suite of powerful Applications, Utilities and Developer Tools, making it simple to create robust, adaptable and intelligent print solutions.
