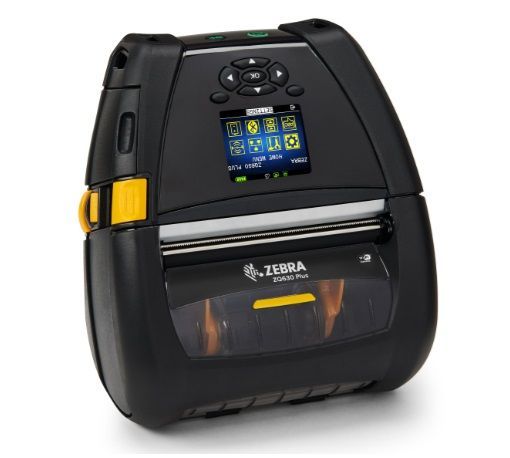

Zebra ZQ630 Plus

Zebra ZQ630 Plus

The Zebra ZQ630 Plus RFID offers fast, dependable wireless connections for your inside-the-four-walls applications. Take advantage of your Wi-Fi 6/6E network upgrade and get best-in-class WPA3 security, lightning-fast speeds and enhanced roaming. For flexibility, choose between 802.11ax/Bluetooth 5.3 or 802.11ac/Bluetooth 4.2 dual radio options, depending on your network environment.
Get a Quote >>

Availability: Call for availability
zebra trade-in program
Product Information

Overview

The Zebra ZQ630 Plus RFID setup is simple with automatic calibration features that eliminate complex RFID placement guidelines. Insert the RFID media into the Zebra ZQ630 Plus and RFID calibrate only once—no need to recalibrate with same-type media changes.

The Industry’s First Wi-Fi 6 Mobile Printer

The Zebra ZQ630 Plus RFID offers fast, dependable wireless connections for your inside-the-four-walls applications. Take advantage of your Wi-Fi 6/6E network upgrade and get best-in-class WPA3 security, lightning-fast speeds and enhanced roaming. For flexibility, choose between 802.11ax/Bluetooth 5.3 or 802.11ac/Bluetooth 4.2 dual radio options, depending on your network environment.

Specifications

RFID Features

• Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
• Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines
• RFID job-monitoring tools track RFID performance
• RFID ZPL commands provide compatibility with existing Zebra RFID printers
• Support for industry standard multi-vendor chip-based serialization (MCS)
• Supports encoding any RFID tag data standard, including SGTIN-96, DSGTIN+, GS1 TDS 2.0, RAIN ISO CIN, etc.
• Integrated RFID Reader/Encoder
• Prints and encodes tags with a minimum pitch of 16 mm

Standard Features

• Apple® iOS, Android™ and Windows® Mobile connectivity
• Direct thermal printing of barcodes, text and graphics
• CPCL, EPL™ and ZPL® programming languages
• 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
• 6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery
• Built-in battery charger
• Belt clip for unobtrusive and convenient printing
• Black mark sensing using fixed center position sensors
• Easy-to-use peel and present mode
• Label present sensor for issuing labels one at a time
• Tear bar for easy media dispensing
• Center-loading media locking for variable roll widths
• “Clamshell” design for easy media loading
• Management: Mirror, SNMP, Web server, Profile Manager, AirWatch®, SOTI® MobiControl™ and Ivanti Avalanche® (powered by Wavelink)
• Large, easy-to-read color display (288 x 240 pixels)
• Color display can be customized using WML (text and icons)
• 5-way navigation buttons, two software defined keys
• Printer color alerts on the display
• Tolerance of multiple drops from 6 ft./1.83 m to concrete
• IP54 dust and water resistance rating
• 400 MHz 32-bit ARM processor
• XML support
• Supports vertical and horizontal printing
• Printers can be used in any orientation
• QR barcode links to web-based help pages
• Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
• Label odometer
• NTP (Network Time Protocol) support via Wi-Fi or Ethernet
• Supports Zebra Network Connect manufacturing plant floor solution when used with the Ethernet cradle

Physical Characteristics

Dimensions
7.35 in. L x 6.5 in. W x 3.25 in. H
187mm L x 165 mm W x 82.5 H mm

Weight with battery
2.45 lbs/1.1 kg

Printer Specifications

Operating System
Link-OS®

Resolution
203 dpi/8 dots per mm

Memory
256 MB RAM; 512 MB Flash (standard)

Maximum Print Width
4.1 in./104 mm

Maximum Print Speed
Up to 4.5 in./115 mm per second

Media Sensors
Black mark sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time

Print Length
Minimum: 0.5 in./12.7 mm
Maximum: 32 in./813 mm

Power
6600 mAh (nominal) 47.5 Wh removable PowerPrecision+ Li-Ion battery

Media Characteristics

Label and Liner Length
0.5 in./12.7 mm to 32 in./813 mm or continuous

Media Width
2.0 in./51 mm to 4.4 in./112 mm (linered)

Maximum Media Roll Size
2.6 in./66 mm O.D. on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core

Thickness
3.2 mil to 5.5 mil tag stock or 7.5 mil label stock

Media Types
Die-cut labels and tags, receipt paper, RFID (ZQ630 Plus RFID compatible), black bar
Note: ZQ630 Plus RFID requires black mark media and does not support gap sensing

Operating Characteristics

Environment
Operating Temp.: -4°F to 122°F/-20°C to 50°C
Operating Humidity: 10% to 90% non-condensing
Storage/Transportation Temp.: -13°F to 149°F/-25°C to 65°C1
Storage Humidity: 10% to 90% non-condensing

Agency Approvals
Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B
Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5
Safety: CE, TUV, CSA
ENERGY STAR® certified

Security
FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information.

Firmware

CPCL, EPL and ZPL programming languages
ZBI 2.x™ — powerful programming language that lets printers run standalone applications, connect to peripherals, and much more

Barcode Symbologies

Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
Linear Barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on
2D Barcodes: PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS) family, Aztec, MSI/ Plessey, FIM Postnet, Data Matrix, TLC39

Fonts and Graphics

Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed)*
Optional Fonts: downloadable bitmapped/scalable fonts
International Character Sets (optional): Chinese (traditional/simplified);
Japanese; Korean; Thai, Vietnamese
*Contains UFST® from Agfa Monotype Corporation

Communication and Interface Capabilities

ZebraNet® Wi-Fi 6 (802.11ax) dual radio with support for:

• Simultaneous Bluetooth 5.3 with BT SIG Certification
• MIMO antenna design
• Operation on both the 2.4GHz and 5GHz frequency bands
• WPA3, WPA2, WPA
• 802.11k, 802.11v and 802.11r roaming standards
• TKIP and AES encryption
• 802.1x (with WPA or WPA2)
• EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
• 802.11d and 802.11i
• Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r

ZebraNet Wi-Fi 5 (802.11ac) dual radio with support for:

• Simultaneous Bluetooth 4.2
• TKIP and AES encryption
• WPA and WPA2
• 802.1x (with WEP, WPA or WPA2)
• EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
• 802.11d and 802.11i
• Wi-Fi Certification
• Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic
Key Caching (OKC), EAP Fast Session resumption or 802.11r

Bluetooth 4.2 (Classic and BLE) radio

• Security modes 1–4
• “Made for iPod/iPhone/iPad” certified
• Key Bonding

10/100 Ethernet support (via charging cradle)
Cabled Communications Specifications

• USB 2.0 full-speed interface (12 Mbps)
• Mini-B connector with optional strain relief
• Serial interface: 14-pin RS-232C port for communication to terminal or
other host up to 115.2 Kbps

Print DNA Software

Durable printers are essential, but it's the software inside that will keep them in action. That’s why we built Zebra Print DNA into our printers. It’s a suite of software capabilities that give you the ability to optimize printer performance over their entire lifecycle even as your business needs evolve.


*Specifications are subject to change without notice
