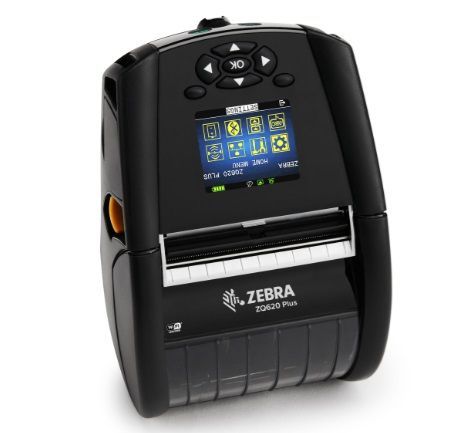

Zebra ZQ620 Plus

Zebra ZQ620 Plus

With the Zebra ZQ620 Plus, you don’t need to worry about downtime from a worn-out printhead. Our unique Printhead Diagnostics provide visibility into the health of printheads across your deployment, enabling you to take action before productivity is impacted.
Get a Quote >>

Availability: Call for availability
zebra trade-in program
Product Information

Overview

The Zebra ZQ620 Plus Power Smart Print Technology™, Zebra’s patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power.

Extraordinary Battery Management Capabilities

The ZQ600 Plus Series’ PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity.

Specifications

Standard Features

• Apple® iOS, Android™ and Windows® Mobile connectivity
• Direct thermal printing of barcodes, text and graphics
• CPCL, EPL™ and ZPL® programming languages
• 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
• ZQ620 Plus and ZQ610 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
• Built-in battery charger
• Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
• Black mark and gap media sensing using fixed center position sensors
• Easy-to-use peel and present mode
• Label present sensor for issuing labels one at a time
• Tear bar for easy media dispensing
• Center-loading media locking for variable roll widths
• "Clamshell” design for easy media loading
• Management: Mirror, SNMP, Web server, Profile Manager, AirWatch®, SOTI® MobiControl™ and Ivanti Avalanche® (powered by Wavelink)
• Large, easy-to-read color display (288 x 240 pixels)
• Color display can be customized using WML (text and icons)
• 5-way navigation buttons, two software defined keys
• Printer color alerts on the display
• Tolerance of multiple drops from 5 ft./1.52 m to concrete²
• IP54 dust and water resistance rating
• 400 MHz 32-bit ARM processor
• XML support
• Supports vertical and horizontal printing
• Printers can be used in any orientation
• QR barcode links to web-based help pages
• Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
• Label odometer
• NTP (Network Time Protocol) support via Wi-Fi or Ethernet
• Supports Zebra Network Connect manufacturing plant floor solution when used with the Ethernet cradle

Physical Characteristics

Dimensions
ZQ610 Plus:
6.73 in. L x 3.6 in. W x 2.85 in. H
170.9 mm L x 91.4 mm W x 72.4 mm H

6.84 in. L x 4.64 in. W x 3.03 in. H
173.7 mm L x 117.9 mm W x 76.9 mm H

Note: The Extended Capacity Li-Ion smart battery option adds 0.6 in./16 mm to the height of either ZQ600 Plus Series printer.
Weight with battery
ZQ620 Plus: 1.6 lbs/0.73 kg

Printer Specifications

Operating System Link-OS®
Resolution 203 dpi/8 dots per mm
Memory 256 MB RAM; 512 MB Flash (standard)

Maximum Print Width
2.8 in./72 mm

Maximum Print Speed
Up to 4.5 in./115 mm per second

Media Sensors
Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time

Print Length
Minimum: 0.5 in./12.7 mm
Maximum: 32 in./813 mm

Power
3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery

Media Characteristics

Label and Liner Length
0.5 in./12.7 mm to 32 in./813 mm or continuous

Media Width
1.0 in./25 mm to 3.125 in./79 mm

Maximum Media Roll Size
2.6 in./66 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core

Thickness
2.3 mil to 5.5 mil tag stock or 6.5 mil label stock

Media Types
Die-cut labels and tags, linerless labels, receipt paper, RFID (ZQ630 Plus RFID compatible), black bar and gap

Operating Characteristics

Environment
Operating Temp.: -4°F to 122°F/-20°C to 50°C
Operating Humidity: 10% to 90% non-condensing
Storage/Transportation Temp.: -13°F to 149°F/-25°C to 65°C1
Storage Humidity: 10% to 90% non-condensing

Agency Approvals
Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B

Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5

Safety: CE, TUV, CSA

ENERGY STAR® certified

Security
FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information.

Firmware
CPCL, EPL and ZPL programming languages

ZBI 2.x™—powerful programming language that lets printers run standalone applications, connect to peripherals, and much more

Barcode Symbologies

Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1

Linear Barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on

2D Barcodes: PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS) family, Aztec, MSI/ Plessey, FIM Postnet, Data Matrix, TLC39

Fonts and Graphics

Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed*)
Optional Fonts: downloadable bitmapped/scalable fonts
International Character Sets (optional): Chinese (traditional/simplified); Japanese; Korean; Thai, Vietnamese

*Contains UFST® from Agfa Monotype Corporation

Communication and Interface Capabilities

ZebraNet® Wi-Fi 6 (802.11ax) dual radio with support for:
• Simultaneous Bluetooth 5.3 with BT SIG Certification
• MIMO antenna design
• Operation on both the 2.4 GHz and 5 GHz frequency bands
• WPA3, WPA2, WPA
• 802.11k, 802.11v and 802.11r roaming standards
• TKIP and AES encryption
• 802.1x (with WPA or WPA2)
• EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
• 8802.11d and 802.11i
• Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r

ZebraNet Wi-Fi 5 (802.11ac) dual radio with support for:
• Simultaneous Bluetooth 4.2
• TKIP and AES encryption
• WPA and WPA2
• 802.1x (with WPA or WPA2)
• EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
• 802.11d and 802.11i
• Wi-Fi Certification
• Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r

Bluetooth 4.2 (Classic and BLE) radio
• Security modes 1–4
• “Made for iPod/iPhone/iPad” certified
• Key Bonding

10/100 Ethernet support (via charging cradle)

Cabled Communications Specifications
• USB 2.0 full-speed interface (12 Mbps)
• Mini-B connector with optional strain relief
• Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps

Print DNA Software

Durable printers are essential, but it’s the software inside that will keep them in action. That’s why we built Zebra Print DNA into our printers. It’s a suite of software capabilities that give you the ability to optimize printer performance over their entire lifecycle even as your business needs evolve.

*Specifications are subject to change without notice
