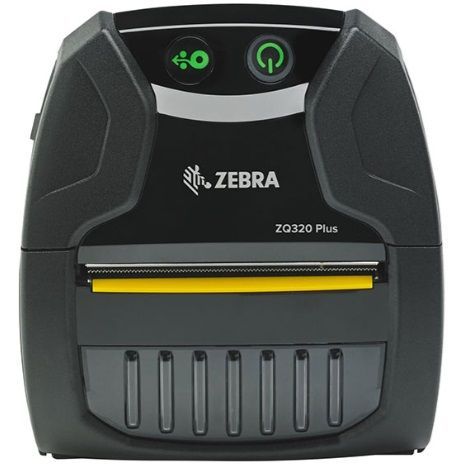

Zebra ZQ320 Plus

Zebra ZQ320 Plus

The Zebra ZQ320 Plus printers let your associates do it all. With receipt printing, associates can ring up sales anywhere in the store. With on-the-spot printing of labels, store associates can complete markups, markdowns and shelf label audits faster and more accurately. Choose the dark grey color scheme with scuff resistant exterior adding extra protection for demanding environments and outdoor use.
Get a Quote >>

Availability: Call for availability
zebra trade-in program
Product Information

Overview

Pair the ZQ320 Plus with practically any mobile device—any Bluetooth®-enabled Zebra mobile handheld computer and tablet, as well as any Android™, iOS®, Windows® CE and Windows Mobile device. It’s also MFi certified for iOS devices.

Specifications

Physical Characteristics

Dimensions
130 mm L x 117.7 mm W x 49.5 mm H
5.12 in. L x 4.63 in. W x 1.95 in. H

Volume
757.4 cc/46.2 cubic in.

Weight with battery
0.43 kg/0.95 lbs

Printer Specifications

Operating System Link-OS® printer operating system
Print Method Direct Thermal
Resolution 203 dpi/8 dots mm
Memory 128MB RAM, 256MB Flash (48 MB User Available)
Battery Li-Ion 2280 mAh, 7.2V, PowerPrecision+

Maximum Print Width
 72 mm/2.83 in.

Maximum Print Speed
Up to 4 ips (100 mm/s)

Media Sensors
Black mark
Gap (optional)
(bar sensor is for the top side marks only)

Programming Languages
CPCL, ZPL. The ZPL programming language ensures full compatibility with many other Zebra printers

Cutter
Tear bar

Print Direction
Horizontal and vertical

Media Characteristics

Media Width
80 mm +0.75 mm/3.15 in. +0.02 in.; spacers available to support 76 mm +0.75 mm/3 in. +0.02 in.

Maximum Roll Outside Diameter
40 mm/1.57 in.

Media Holder
Drop-in fixed media width (clamshell)

Media Thickness
0.05334 mm / 0.0021 in. to 0.16 mm/0.0063 in.

Media Types
Direct thermal: receipt paper, linerless labels

Minimum Receipt Length
12.5 mm/0.49 in.

Maximum Receipt Length
Unconstrained in line mode

Label Counter
Odometer

Operating Characteristics

Operating Temp.
 -15° to +50°C/5° to +122° F

Storage Temp.
-20° to 60°C/-4° to +140° F

Charging Temp.
0° to 40°C/0° to +140° F

Operating Humidity
10% to 90% non-condensing

IP Rating
IP54

Drop Specification
1.5 m/5 ft. tested over operating temp. range

Tumble Specification
500 free falls from 1 m/3.3 ft.

Vibration
MIL STD 810

Agency Approvals
FCC Part 15 and EN 55022 Class B limits; FCC, IC, and European Standards for Bluetooth and 802.11a/b/g/n; T V and IEC 60950 standard for Safety; NOM, C-Tick, VCCI, S-Mark, PSE, CCC, MII Bluetooth SIG-registered and Wi-Fi certified

Validation Testing
The ZQ300 and ZQ300 Plus Series printers have been tested with industry-leading applications to verify interoperability and improve overall optimization with validated terminals. Zebra Independent Software Vendor (ISV) Partners create industry leading software solutions to solve business problems. Zebra works closely with these ISVs to integrate printing and other capabilities of Zebra products.

Communication And Interfaces Capabilities

Bluetooth
BR/EDR, LE 4.2

USB 2.0
Client, Type- C™ connector

NFC
Passive NFC tag

Host OS Supported
Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications) Android 2.3, 4.0, 4.1, iOS 5, iOS 6, iOS 7, iOS 10

User Interface
LEDs

WLAN (Optional)

WLAN
802.11ac

WLAN Security
TKIP, AES encryption, WPA, WPA2, 801.1X (WPA or WPA2) EAP- FAST, EAP- TTLS, EAP-TLS, PEAP, LEAP

WLAN Features Supported
802.11r, 802.11d, 802.11i, Simultaneous WAN & BT 4.2, Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), or EAP Fast Session resumption

Internet Protocols over WLAN
UDP/TCP, DHCP/BootP, FTP/Mirror, HTTP, SMTP / POP3, Telnet, LPD, SNMP

Barcode Symbologies

Barcode Ratios
1.5:1, 2:1, 2.5:1, 3:1, 3.5:1

Linear Barcodes
Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, 2 and 5 digit add-on, Interleaved 2-of-5, UCC/EAN 128, UPC-A, UPC-E,2 and 5 digit add-on

2D Barcodes
2D Barcodes: Aztec Code, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39

Fonts/Graphics

CPCL/ZPL (Scalable)
Latin 9, Arabic, Cryillic, Hebrew, SourceCodePro, NotoMono (CJK), Hans (CJK), Thai (Angsana)

CPCL (Bitmap)
Standard fonts: 25 bitmapped, smooth-scalable (CG Triumvirate™ Bold Condensed), scalable SourceCodePro, scalable NotoMono (CJK), scalable Hans (CJK), Optional fonts: Downloadable bitmapped and scalable fonts, *Contains UFST  from Agfa Monotype Corporation

ZPL
Standard fonts: 25 bitmapped, smooth-scalable (CG Triumvirate™ Bold Condensed), scalable SourceCodePro, scalable NotoMono (CJK), scalable Hans (CJK), Optional fonts: Downloadable bitmapped and scalable fonts, *Contains UFST from Agfa Monotype Corporation

Included In The Box

Printer, battery (Li-Ion 2280 mAh), belt clip, USB cable (Type C to Type A), Quick Start Guide, registration card, Safety Guide, Regulatory Guide

Print DNA Software

Durable printers are essential, but it’s the software inside that will keep them in action. That’s why we built Zebra Print DNA into our printers. It’s a suite of software capabilities that give you the ability to optimize printer performance over their entire lifecycle even as your business needs evolve.


*Specifications are subject to change without notice
