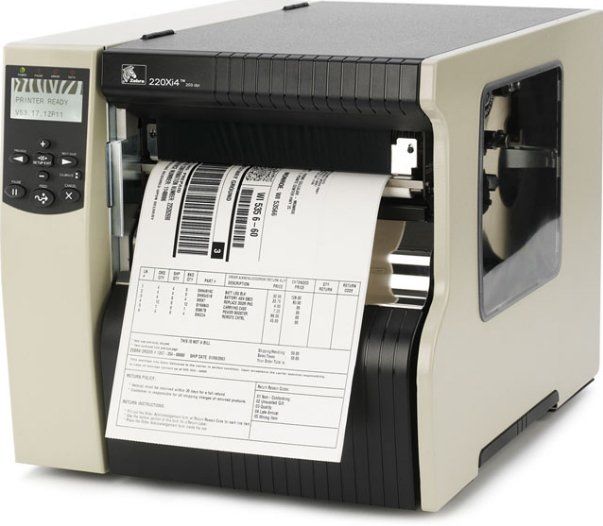

Zebra 220Xi4

Zebra 220Xi4

Built for high-volume applications and harsh environments, Zebra’s Xi Series label printers deliver superior print quality and reliability. Boost productivity with faster print and connection speeds, and reduce downtime with early warning.
Get a Quote >>

Availability: Call for availability

Includes Full Manufacturer's Warranty
zebra trade-in program
Product Information

Overview

Built for high-volume applications and harsh environments, Zebra’s Xi Series label printers deliver superior print quality and reliability. Boost productivity with faster print and connection speeds, and reduce downtime with early warning.

Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Print methods: Thermal transfer or direct thermal
Construction: 12-gauge steel frame
Single 32 bit 133 Mhz RISC processor
16 MB SDRAM; 8 MB non-volatile Flash memory
Automatic media/ribbon sensing capability
Improved head test for element out
Auto calibration

More Standard Features

  • Print methods: Thermal transfer or direct thermal
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 Mhz RISC processor
  • 16 MB SDRAM; 8 MB non-volatile Flash memory
  • Automatic media/ribbon sensing capability
  • Improved head test for element out
  • Auto calibration
  • Clear media side door for ease of supplies monitoring
  • 300 unique darkness settings
  • RS-232, Parallel ports
  • USB 2.0 port
  • Internal ZebraNet 10/100 PrintServer
  • ZPL or ZPL II Programming Language
  • XML enabled printing
  • Mirror feature allows user-defined printer configurations to be retrieved from the network
  • Create and design customizable printer LCD menus
  • Large (240W x 128H pixels), multilingual, backlit, graphical LCD display
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • Unicode™ – Compliant
  • Intelligent printhead

Printer Specifications

Resolution: 203 dpi (8 dots/mm) 300 dpi (12 dots/mm) Memory 16 MB SDRAM 8 MB Flash Print width: 8.5″ (216mm) Print length: 150″ (3810mm) using continuous media Print speed: Up to 10″ per second (203 dpi) Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 8.8″ (224mm) Minimum label and liner width: 4.25″ (108mm) Maximum label and liner length: 39″ (991mm) non-continuous to 150″ (3810mm) continuous media Maximum roll diameter: 8″ (203mm) Core diameter 3.0″ (76mm) Media thickness: .003″ (.076mm) to .012″ (.305mm) Media types: continuous, black mark, roll-fed, die-cut, fanfold

Ribbon Characteristics

Outside diameter: 3.2″ (81.3mm) Standard length: 1476′ (450m) or 984′ (300m) Ratio: 2:1 and 3:1 media roll to ribbon ratios Ribbon width: 4.25″ (108mm) to 8.6″ (220mm) Ribbon setup: Ribbon wound ink side out ID Core: 1.0″ (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (40° C) Thermal transfer DT: Operating temperature: 32° F (0° C) to 105° F (40° C) Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C) Operating humidity: 20 to 85% non-condensing relative humidity Storage humidity: 5% to 85% non-condensing relative humidity Electrical: Universal power supply with power factor connection 90-264 VAC; 48 – 62 Hz Agency approvals
  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • KCC
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK

Physical Characteristics

Width: 15.81″ (401.6mm) Height: 15.5″ (393.7 mm) Depth: 20.38″ (517.5 mm) Weight: 72 lbs (32.7 kg)

Related Products

Options
  • ZebraNet Wireless Plus Print Server
  • ZebraNet Internal Wireless Plus (Discontinued)
  • Internal IPv6 Print Server
  • IBM Twinax interface
  • IBM Coax interface
  • Rewind with peel
  • Cutter
  • Bi-fold media door with clear panel
  • Media supply spindle for 40 mm cores
  • 64MB Flash Memory with ZPL II and XML
  • Scalable and international fonts
  • Applicator interface
  • ZebraDesigner
  • ZebraDesigner Pro
  • ZebraDesigner for XML
  • ZebraNet Bridge
  • Enterprise Connector
  • ZebraNet b/g Print Server
Communication and Interface Capabilities
  • USB 2.0 port (12 Mbits per second)
  • RS-232C/422/485 multi-drop (optional adaptor)
  • High-speed, bi-directional, IEEE 1284 parallel interface
  • ZebraNet Wireless Plus Print Server
  • ZebraNet 10/100 Print Server
  • IBM Twinax interface
  • IBM Coax interface
  • Applicator interface
  • IPV6 Print Server
  • ZebraNet b/g Print Server

Programming Languages

Core programming languages: XML, ZPL, ZPL II

Bar Codes/Symbologies

Linear Codabar Code 11 Code 128 with subsets A/B/C and UCC case codes Code 39 Code 93 EAN-13 EAN-8 ISBT-128 Industrial 2-of-5 Interleaved 2-of-5 Logmars MSI Planet Code Plessey Postnet Standard 2-of-5 UPC and EAN 2 or 5 digit extensions UPC-A UPC-E 2-dimensiona lAztec Codablock Code 49 Data Matrix MaxiCode MicroPDF PDF417 QR Code QR Code (requires Asian version printer) RSS / GS1 DataBar family (12 barcodes) TLC 39 Fonts and Graphics
  • Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
  • Smooth scalable font (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
  • IBM® Code Page 850 International Characters
MFG Part #(s): 220-801-00000, 220-801-00100, 220-801-00200, 220-801-00203, 220-804-00100, 220-851-00000, 220-851-00100, 220-8K1-00000, 220-8K1-00100, 220-8K1-00200, 223-801-00000

*Specifications are subject to change without notice
