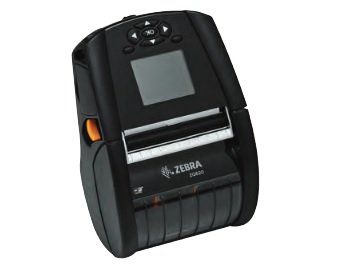

Zebra ZQ620

Zebra ZQ620

The Zebra ZQ620 takes Zebra’s popular QLn platform and makes it even better — adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level.
Get a Quote >>

Availability: Call for availability
zebra trade-in program
Product Information

Overview

Advanced battery technology and more battery capacity power every minute of the longest shift. The instant wake-up feature
ensures the Zebra ZQ620 never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the
four walls and your IT department will find the Zebra ZQ620 easier to integrate, manage, setup and secure thanks to Zebra’s Link-OS® operating system and powerful Print DNA suite of applications, utilities and developer tools. The Zebra ZQ620 Series — the next evolution in the gold standard for mobile label and receipt printing.

PHYSICAL CHARACTERISTICS

Dimensions
6.8 in. L x 4.6 in. W x 3.3 in. H
173 mm L x 117 mm W x 84 mm H

Weight
with battery1.6 lbs/0.73 kg
Note: The Extended Capacity Li-Ion smart battery option adds 0.20 lbs/0.09 kg to the weight and 0.6 in./16 mm to the height of either ZQ600 Series printer.

PRINTER SPECIFICATIONS

Operating System Link-OS®

Resolution
203 dpi/8 dots per mm

Memory
256 MB RAM; 512 MB Flash (standard)

Maximum Print Width 2.8 in./72 mm

Maximum  Print Speed Up to 4.5 in./115 mm per second

Media Sensors
Black mark and gap media sensing using fixed center position
sensors; label present sensor for issuing batch labels one at
a time

Print Length
Minimum: 0.5 in./12.7 mm
Maximum: 32 in./813 mm

Power
3250 mAh (nominal) 23.4 Wh removable, rechargeable
PowerPrecision+ Li-Ion battery

MEDIA CHARACTERISTICS

Maximum Labeland Liner Length
0.5 in./12.7 mm to 32 in./813 mm or continuous

Media Width
1.0 in./25 mm to 3.125 in./79 mm

Maximum Media  Roll Size
2.6 in./66 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core

Thickness
2.3 mil to 5.5 mil tag stock or 6.5 mil label stock

Media Types
Die-cut labels and tags, linerless labels, receipt paper, black bar and gap sensing

OPERATING CHARACTERISTICS

Environment
Operating Temp.: -4°F to 122°F/-20°C to 50°C
Operating Humidity: 10% to 90% non-condensing
Storage/Transportation Temp.: -13°F to 149°F/-25°C to 65°C 1
Storage Humidity: 10% to 90% non-condensing

Agency Approvals
Emissions: FCC Part 15, Subpart B, EN55022 Class-B,
EN60950, EN55024 and VCCI class B
Susceptibility: EN55024, EN61000-4-2,
EN61000-4-3, EN61000-4-4, and EN61000-4-5
Safety: CE, TUV, CSA

*Specifications are subject to change without notice
