Zebra VC83 (8 inch)

Zebra VC83 (10-inch)

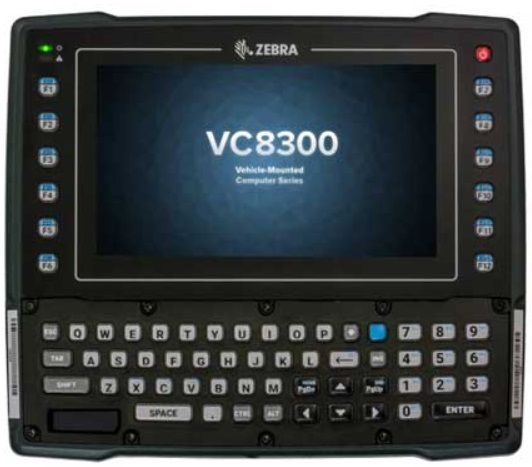

The Zebra VC8300 8-inch offers complete flexibility. The integrated full alphanumeric keyboard gives your workers the same familiar key-based interaction they use today—no change to workflow required. And the touchscreen allows you to integrate touch into your apps whenever you’re ready.

Get a Quote >>

Availability: Call for availability

View Zebra VC83 10-Inch model >>

Get $250 Trade-In Rebate (learn more)

Product Information

Overview

Easily add whatever features your workers need, including a wide range of cordless and corded barcode scanners, mobile printers and a Push-to-Talk microphone. And with a quick scan of the pairing barcode printed directly on the VC8300, workers can instantly pair any Zebra Bluetooth peripheral.

Specifications

Physical Characteristics

Dimensions

10.87 in. W x 9.37 in. H x 3.54 in. D

276 mm W x 238 mm H x 90 mm D

Weight

8.2 lbs/3.7 kg

Display

WXGA 8 inch, color display; 1280x720, 1,000 NITs

Touch Panel

Capacitive multi touch, Corning Gorilla Glass with air gap, heater option, anti-reflective foil option

Power

10 to 60V DC isolated; Internal

Keyboard Options

QWERTY/AZERTY

Keyboard

Backlit, field replaceable, full alphanumeric, 67 keys, 12 direct function keys

Diamond key pops up on-screen keyboard for additional characters

Indicators

Audible tone

Power Status: Green/Amber LED

Warning: Red LED

Mounting

RAM mount; quick release mount; side mounted scanner holder

Connectivity

1x Type C USB 3.0 combination host and client port; 1 x USB 2.0 host port (with strain relief and covered); 1 x standard powered USB 2.0 host port with 12V / 1.5 A (with strain relief and covered); 2 x RS-232 COM ports with power on pin 9; 1 x 3.5 mm audio jack for push-to-talk speaker/mic (with strain relief and covered); optional USB-Ethernet adapter

UPS

UPS with minimum 30-min life over the full operating temperature range

Performance Characteristics

CPU

Qualcomm SnapdragonTM 660 octa-core 2.2 GHz

Operating System

Upgradeable to Android 14

Memory

4GB RAM/32 GB Flash pSLC

Software

Ivanti Velocity (pre-loaded and pre-licensed)

User Environment

Operating Temp.

-22° F to 122° F/-30° C to 50° C

Storage Temp.

-40° F to 140° F/-40° C to 60° C

Humidity

5% - 95% RH condensing

Sealing

IP66

Shock/Vibration

IEC 60721-3-5M3; MIL-STD 810F; Zebra internal

Thermal Shock

-22° F to 122° F/-30° C to 50° C

Sensors

Temperature, accelerometer, gyroscope

Salt Fog

48h of 5% solution at 35° C

Solar Radiation

MIL-STD 810G Method 505.5

Electrostatic Discharge (ESD)

+/-15kV air discharge; +/-8kV contact discharge;

+/-8kV indirect discharge

Data Capture

Scanner Support

HID via USB and Bluetooth; SSI via USB and Bluetooth for DS/LI 36XX and RS6000; Serial RS232 with power on pin 9

Voice and Audio

Audio

High volume 87dB speaker

Push-to-Talk

Optional speaker microphone

Wireless LAN

Radio

IEEE 802.11a/b/g/n/ac/k/r; 2x2 MU-MIMO

Data Rates

5GHz: 802.11a/n/ac—up to 866.7 Mbps

2.4GHz: 802.11b/g/n—up to 300 Mbps

Operating Channels

Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13

Channel 36-165 (5180-5825 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165

Channel Bandwidth: 20, 40, 80 MHz

Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.

Security and Encryption

WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA/WPA2 Enterprise (TKIP and AES) - EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD

FIPS 140-2 Level 1: Data in Motion and Data at Rest2

Multimedia

Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC)

Certifications

WFA (802.11n, WMM-PS, 802.11ac, PMF, WMM-AC, Voice Enterprise, WiFi Direct and WPS 2.0)

Fast Roam

PMKID caching, Cisco CCKM, OKC, 802.11r

WLAN Antennas

Switchable internal or external antennas, various magnetic mounted antennas available

Wireless PAN

Bluetooth

Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)

Freezer and Condensing

Selected industrial components with a wide temperature range specification

Inside and outside temperature sensors to identify condensing circumstances

Heated boards (additional resistors) to avoid inside condensation

Heated and vented UPS battery that charges/discharges over the full operating temperature range (-22° F to 122° F/-30° C to 50° C)

Heated connectors to avoid corrosion

Heater control chip to switch heaters on/off when required

Flat surface and drainage holes to avoid heavy icing on the front

Communication and Messaging

Workforce Connect PTT Express (included) provides instant push-to-talk small group communications across Wi-Fi networks. Workforce Connect PTT Pro (supported) provides a scalable network agnostic push-to-talk solution which also includes messaging, location services and two-way radio integration.

Platforming

Mobility DNA, Enterprise MDK, Standard Android SDK and SOTI for Android, Analytics Agent

*Specifications are subject to change without notice
