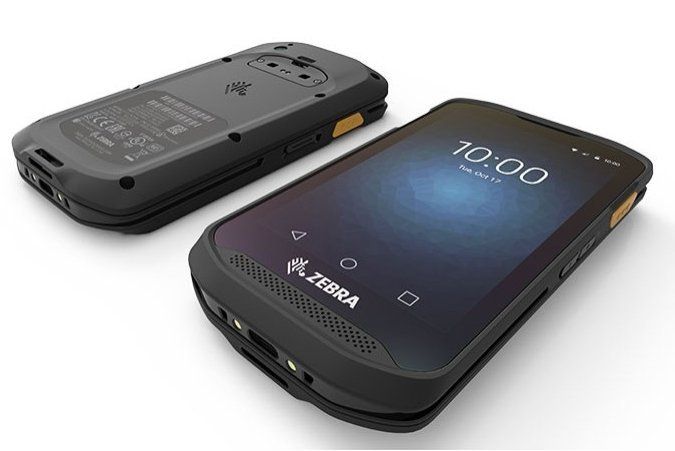

ZEBRA TC25 RUGGED SMART PHONE

Zebra TC25

Smartphone cameras aren’t built for barcode scanning — that’s why the TC25 delivers the same scanning technology that drives many of the world’s field service teams.
Get a Quote >>
Availability: Call for availability



We'll buy your old barcode scanners! Learn more >>
manufacturer warranty
Built for work
Rain. Heat. Sub-zero cold. Drops. Spills. The Zebra TC25 can handle it all!
Product Information

Overview

The Zebra TC25 makes it so easy to do business. With Android, you get pinch and zoom and all the same familiar gestures you already use on your personal smartphone. The screen is just as easy to see outside as it is indoors. The large touchscreen displays all the information you need to see — without scrolling. And three programmable buttons provide instant access your most used features and applications.

Specifications

DIMENSIONS

5.27 in. L x 2.82 in. W x .63 in. D
134 mm L x 73.1 mm W x 16 mm D

WEIGHT

6.88 oz./195 g

DISPLAY

4.3 in. color WVGA (800x480); LED backlight;
Corning Gorilla Glass

IMAGER WINDOW

Corning Gorilla Glass

TOUCH PANEL

Capacitive Touch Panel; multi-touch

POWER

Non-removable / serviceable
Rechargeable Li-Ion: standard capacity, 3000mAh
Charge in under 4 hours (10 hours = 1 shift)
RTC backup

EXPANSION SLOT

One 128GB micro SD slot

SIM

1 Nano SIM slot

NETWORK CONNECTIONS

1 USB OTG - host/client
(Type C connector)

NOTIFICATIONS

Audible tone, multi-colored LEDs, vibration

KEYPAD

On-screen keypad

AUDIO

Speaker - 1 Watt (94dBA)
Voice support (Internal speaker/microphone)
Two (2) microphones

BUTTONS

Scan on each side, Volume Up/Down, Power,
push-to-talk (PTT) keys

CPU

QCOM MSM8937® 64-bit 8-Core, ARM®
Cortex A53 1.4GHz, 512KB L2 cache,
power-optimization

OPERATING SYSTEM

Android Nougat 7.X

MEMORY

2GB RAM/16GB Flash memory

SECURITY

Verified Boot

OPERATING TEMPERATURE

14° F to 122° F / -10° C to 50° C

STORAGE TEMPERATURE

-40° F to 158° F / -40° C to 70° C

DROP SPECIFICATIONS

Multiple 4 ft./1.2 m drop to tile over concrete per MIL-STD 810G at room temperature

TUMBLE SPECIFICATIONS

300 tumbles, 1.6 ft./0.5 m

VIBRATION

4G peak, 5Hz to 2kHz, 1 hour duration per axis

THERMAL SHOCK

-40°C to 70°C rapid transition
10 cycles: (1 cycle = 1.25 hours at -40°C
and 1.25 hours at 70°C

ELECTROSTATIC DISCHARGE

+/-15kv Air, +/-8kv contact
+/-8kv charge body

SCANNING

SE2100 1D/2D imager
SE4710 1D/2D imager

REAR CAMERA

8MP autofocus color camera with flash

WLAN RADIO

802.11a/b/g/n/ac/d/r/h/i IPv4, IPv6

WIRELESS PAN

Bluetooth 4.2 BLE


*Specifications are subject to change without notice
