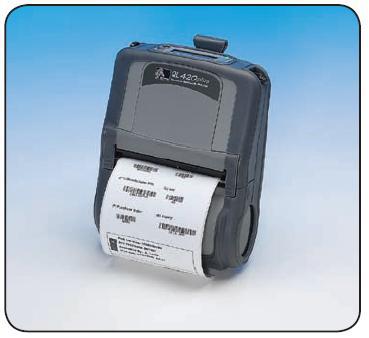

Zebra QL 420Plus

Zebra QL 420Plus

Need a printing partner tough enough for the concrete jungle? The durable QL Plus series of direct thermal mobile printers can survive everything from warehouse floors to parking lots. Plus, these powerful printers with secure wireless connectivity process and print labels/receipts with complex graphics and fonts quickly. The QL Plus series of direct thermal printers has been designed with the most advanced technology in rubberized over-molding to maintain robust construction and minimal weight.
Get a Quote >>

MFG Part #(s):  Q4D-LHBA0000-00, Q4D-LIBA0000-00, Q4D-LU1A0000-00, Q4D-LU1B0000-00, Q4D-LUBB0000-00, Q4D-LUBD0000-00,  Q4D-LUGA0000-01, Q4D-LUGA0000-08, Q4D-LUGAA000-00, Q4D-LUGB0000-00

Availability: Call for availability
manufacturing warranty
Product Information

Overview

Durable Mobile Printers to Meet Your Changing Business Needs.

Need a printing partner tough enough for the concrete jungle? The durable QL Plus series of direct thermal mobile printers can survive everything from warehouse floors to parking lots. Plus, these powerful printers with secure wireless connectivity process and print labels/receipts with complex graphics and fonts quickly. The QL Plus series of direct thermal printers has been designed with the most advanced technology in rubberized over-molding to maintain robust construction and minimal weight. With centerloading media, battery monitoring and an LCD, these printers provide user-friendly options to keep your business moving. QL Plus series mobile printers enabled with secure wireless options are easily integrated into your infrastructure. Just a glance at the LCD, and you can read your network settings, or check the communications status. In addition, each printer can be assigned a unique IP address for monitoring over the network, and messages can be sent to the printer using the POP3 functionality. All of these features make the QL Plus printer an integral part of your network environment. The QL Plus series’ wireless modules in Bluetooth® 2.0 or 802.11b/g offer the flexibility to adjust to a wide range of connectivity needs.

Specifications

Resolution: 203 dpi (8 dots/mm)
Memory: 8 MB Flash, 16 MB RAM
Print width: 4.09″ (103.9 mm) maximum
Print length: Maximum print length 32″ (813 mm) – actual length depends upon total memory usage
Print speed: 3″ (76 mm)/sec

More Standard Features

Print method: Direct thermal Rubber infused plastic over-mold design for tough conditions Battery monitoring via a battery low indicator light or gauge on the optional LCD Lithium ion battery Open access design and center locking media loading Backward compatible with Encore and Cameo media and cables Label Vista and Windows printer drivers Quick Flip Peel and Present Mode USB 2.0 Full Speed Support Native CPCL, ZPL, EPL2, and XML support

Printer Specifications

Resolution: 203 dpi (8 dots/mm) Memory
  • 8 MB Flash
  • 16 MB RAM
Print width: 4.09″ (103.9 mm) maximum Print length: Maximum print length 32″ (813 mm) – actual length depends upon total memory usage Print speed: 3″ (76 mm)/sec

Optional Features

  • Bluetooth
  • 802.11b/g
  • Linerless
  • International character sets
  • Application-specific accessories

Media Characteristics

Maximum label and liner width: 2″ (50.8 mm) to 4.12″ (104.6 mm) Maximum roll diameter: 2.625″ (66.68 mm) on .75″ (19.05 mm) core Core diameter: Interchangeable .75″ (19.1 mm) or 1.38″ (34.9 mm) Media thickness: Label thickness: 2.5 mil to 6.5 mil / Tag receipt thickness: 2.5 mil to 6.0 mil Media types: roll-fed, die-cut, linerless, receipt, fanfold, black bar

Operating Characteristics

Operating temperature DT: 5° F (-15° C) to 122° F (50° C) Direct thermal Storage temperatures: -13° F (-25° C) to 158° F (70° C) Operating humidity: 10-80% non-condensing Storage humidity: 10-90% non-condensing Electrical External charger options Lithium Ion 2.1 Ah 7.4 V

  • Agency approvals
  • FCC and CE Class B compliance
  • Design certified by CSA
  • CB Scheme report
  • NOM certified
  • C-Tick clearance

Physical Characteristics

Width: 6.0″ (152.4 mm) Height: 7.5″ (190.5 mm) Depth: 3.0″ (76.2 mm) Weight: 2.0 lbs (0.907 kg)

Related Products

Options
  • LCD control panel
  • 802.11b or 802.11g wireless local area network (WLAN) and/or Bluetooth
  • Wireless Security Support (ie. WPA, WPA2, VPN, 802.11i)
  • Media width auto-sensing feature
  • Linerless printing
  • Spare Lithium Ion battery packs
  • Battery chargers
  • International character sets
  • Label Vista software for receipt and label design and font creation
Communication and Interface Capabilities
  • RS-232 8PIN DIN connector serial port
  • Selectable baud rate 9600 to 115.2 kbps
  • Xon/Xoff or hardware flow control
  • Optional: Bluetooth
  • Optional: 802.11b and 802.11g Wireless LAN

Programming Languages

Core programming languages: CPCL-native, ZPL II, EPL2, XML

Bar Codes/Symbologies

Linear Codabar Code 128 Code 93 Code 39 EAN-8 and EAN-13 with 2 or 5 digit extensions Interleaved 2-of-5 Postnet Plessey UCC/EAN-128 FIM UPC-A and UPC-E with 2 or 5 digit extensions 2-dimensional PDF417 MaxiCode Data Matrix RSS / GS1 DataBar family (12 barcodes) QR Code Aztec

Fonts and Graphics
  • Standard fonts: five resident scalable, rotatable fonts from 12-48 pt.
  • Downloadable soft fonts from Label Vista software
  • Optional international character sets
  • Supports graphics, line and box drawing features; PCX and bitmap
*Specifications are subject to change without notice
