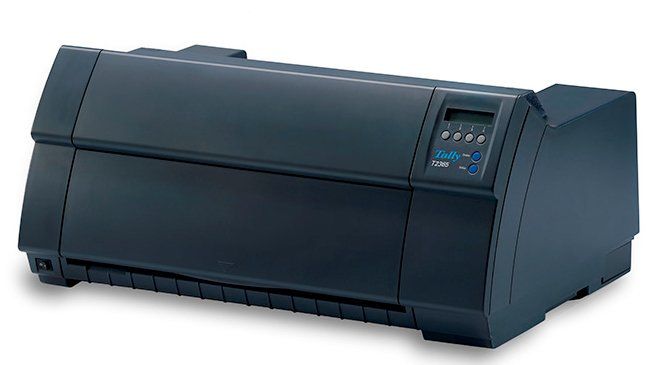

Tally Dascom T2380

Tally Dascom T2380

“Unsurpassed excellence”. That defines the rugged high powered T2380 printer. Built to leave a lasting impression on your productivity, this high speed workhorse exemplifies what rugged durability is all about.
Get a Quote >>
Availability: Call for availability

DASCOM Trade-In Program product
manufacturer warranty
Product Information

Overview

“Unsurpassed excellence”. That defines the rugged high powered T2380 printer. Built to leave a lasting impression on your productivity, this high speed workhorse exemplifies what rugged durability is all about. With its advanced 24-pin print head, the 2380 is engineered to perform at a blistering pace even in the harshest of operating environments. You’re assured of top-shelf performance, crisp, clear and reliable print quality and a machine you can count on when your performance is what counts.

Low running costs and durability in the harshest of print environments make these products excellent value for money.

Specifications

Full range of automatic features to minimize user intervention
Ideal for ‘On-Demand‘ and ‘Batch‘ applications with zero tear for no wasted forms
Straight through paper path for easy forms loading
Parallel and Ethernet (10/100BaseT) standard.
Optional Interfaces: RS232 Serial; Coax/Twinax; Ethernet IPDS• Straight through paper path for easy forms loading
Compatible with a wide range of operating systems including Wiindows, UNIX, DOS, SAP R3 and legacy systems


Print Speed

At 10, 12 cpi: High Speed Draft 800, 1000; Draft 667, 800; NLQ 222, 267

Throughput

627 pages per hour (ECMA 132)

Character Density

5, 6, 7.5, 8.6, 10, 12, 15, 17.1, 20 cpi (Emulation dependent)

Line Density

2, 3, 4, 6, 8, 12 lpi

Printhead Life

750 million characters (draft)

Memory

128KB

Standard Connectivity

Bi-directional parallel plus Ethernet 10/100BaseT with 128Kb buffer

Optional Connectivity

RS232 Serial, Adapters, Twinax/Coax, Ethernet IPDS

Standard Emulation

BM® Proprinter, Epson® LQ (ESC P/2), Genicom ANSI, MTPL + Barcode/LCP IGP Version: IGP/PGL, Code V, MT660, Printronix
P6000, HP2564C

Optional Emulation

PCL3 (rugged writer

Fonts

HS Draft, Draft, Copy Draft, Courier, Roman, Sans Serif, Prestige, Script, Orator, Gothic, Souvenir, Kix/Royal, OCR A, OCR B, 22 Bar
Codes & scaleable LCP

Consumables

20 million characters

STD Paper Handling / Optional Paper Handling

Push tractor with paper parking and AGA; 2nd rear push tractor – T2380-2T only

Paper Type

2nd front tractor (user installable), paper pedestal, paper basket, paper cutting device

Paper Type

Continuous forms

Paper Weight

60-120gsm

Paper Size

Length: 3“ min, 22“ max; Width: 3“ min, 16.5“ max

Physical Weight

Approximately 45.6 lbs (20.7kg)

Physical Size

24.5“ x 11“ x 17“ (623 x 280 x 432 W x H x D mm)

Power Voltage

AC 230V and 120V (selectable)

Power Consumption

60W printing

Workload

50,000 pages per month

Number of Copies

Up to 6-part forms; 2-part forms for rear tractor of T2380-2T

Temperature

+10° to +35°C

Humidity

20% to 80%

Acoustic

59dB(A)

Warranty

90 day on-site warranty

Documents

Product Brochure:
Download File
