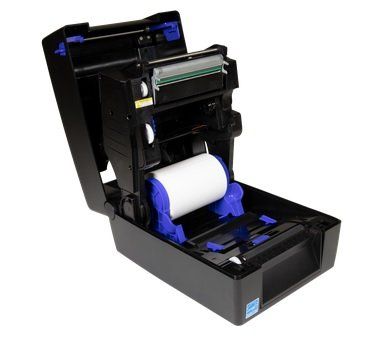

Printronix Auto ID T800

The Printronix Auto ID T800 is a high-performance, thermal desktop printer with enterprise-level productivity, dependable performance, and a selection of versatile high-end features such as RFID, Wi-Fi, and advanced security protocols.

Get A Quote >>

Availability: In Stock

Product Information

HIGHLIGHTS

The T800 is Printronix’s first desktop printer to incorporate its renowned Printronix System Architecture (PSA) and includes a full suite of labor-saving features and printer management tools for easy day-to-day operations.

PRODUCT BENEFITS

High performance ARM Cortex-A7
Available in 203 DPI and 300 DPI
Re-enforced plastic enclosure
128MB RAM / 128MB Flash Memory
Transfer and direct printing
Color 3.5in LCD nine-key control panel
Four-inch print width
4-32 GB SD memory card capability
Printronix Systems Architecture (PSA)
Ethernet 10/100 BaseT (Standard)
WiFi 802.11 a/b/g/n/ac (Option)
Bluetooth 4.2 (Option)
Premium Asian Fonts (Option)
On-Pitch RFID, multi-position antenna
ENERGY STAR Certified

PRINTING CHARACTERISTICS

Max Print Speed: 8 IPS @ 203 DPI / 6 IPS @ 300 DPI
Print Method: DirectThermal / Thermal Transfer
Resolution: 203 DPI or 300 DPI
Max. Print Width: 4.1” (104mm)
Printer Memory: 128MB RAM / 128MB Flash

RIBBON SPECIFICATIONS

Ribbon Type: Wax, Wax/Resin, Resin
Min. Ribbon Width: 1.0″ (25.4mm)
Max. Ribbon Width: 4.33″ (110mm)
Max. Ribbon Length: 300 Meters
Ribbon Core Diameter: .5″ (12.7mm), 1.0″ (25.4mm)

MEDIA SPECIFICATIONS

Media Type Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
Min. Media Width 0.79” (20mm)
Max. Media Width 4.4” (112mm)
Min. Media Length Continuous 0.25”, Tear-Off / Peel-Off 1.0”
Max. Media Length Up to 50”
Media Thickness 0.00236” (0.06mm) to 0.00784” (0.19mm)
Media Roll Core Diameter 1.0″ (25.4mm), 1.5” (38mm)
Max. Media Roll Diameter 5.0″ (127mm),
Media Sensing Gap, Mark

MEDIA HANDLING MODES

Standard: Continuous, Tear-Off Strip
Options: Peel-Off, Cut

PHYSICAL CHARACTERISTICS

Width: 8.3″ (210mm)
Height: 7.5″(190mm)
Depth: 11.2″(285mm)
Printer Weight: 6.79 lbs.(2.9Kg)
Shipping Weight: 9.47 lbs.(4.3Kg)

PRINTER LANGUAGE

Printer Languages (Native / Competitor): PGL/VGL/ZGL/TGL/IGL/STGL/DGL/IEGL/MGL/EGL
Legacy Line Printer Emulations: P-Series / XQ, Proprinter, Serial Matrix, Epson FX
Job Control Languages: PJL, XML, and PTX-SETUPPrinter Languages: EPL, ZPL, ZPL2

COMMUNICATION AND CONNECTIVITY/INTERFACE

Standard Interface: I/O:Serial RS232, USB Device (Type B), USB Host (Type A) and Ethernet 10/100Base T
Optional Interface I/O: WiFi (802.11a/b/g/n/ac) (WiFi Alliance Certified), and Bluetooth 4.2
WiFi Security Encryption: WEP 40/128bit, TKIP, AES CCMP
WiFi Security Authentication: WPA/WPA2, PSK, EAP-TTLS, EAP-PEAP, LEAP, PEAPv1/ PEAP-TLS, PEAPv0/MS-CHAPv2

RFID

Radio: UHF EPC Gen2 V2 / ISO18000-6C
Antenna: Multi position RFID Antenna
Inlays: On-Pitch label to 0.625 in (depending on inlay), RFID
label calibration
Languages: PGL, ZPL, STGL, MGL
Counters: Tracks good / overstruck labels

OPERATING ENVIRONMENT

Operating Temperature 40 to 104°F (5 to 40°C)
Operating Humidity 25-85% Non-Condensing
Storage Temperature -40 to 140°F (-40 to +60°C)
Storage Humidity 10 – 90% Non-Condensing

POWER REQUIREMENT

Line Input Auto Range 100 – 240 VAC (48 – 62 Hz)

REGULATORY COMPLIANCES

Emissions: FCC, CE, IC, CCC, KC
Safety: cTUVus, CE, IC, EAC, SMARK, NOM, CCC, KC, BIS, BSMI
Environmental: RoHS, WEEE, Energy Star 2.0
RFID: FCC, IC, CE, CCC, NCC, NTC, WPC
WiFi/BT: FFC, IC, CE, CCC
Energy Savings: Energy Star 2.0

BARCODE SYMBOLOGIES

1D Barcodes:BC-412, Code 11, Code 39, Code35, Code 93, Codabar, Code 128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5, German 1-2/5, EAN-8, EAN-13, UCC/EAN-128, UPC-A, UPC-E, UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET, 4-state PostBar, Austrailian 4-state, FIM, ITF14, TELEPEN, PLANET, USPS Intelligent Mail, LOGMARS
2D Barcodes: PDF-417, MicroPDF-417, Maxicode, DataMatrix, QR Codes, Aztec, GS1 Databar (RSS-14)

FONT, GRAPHIC SUPPORT

Graphic Formats: PCX, TIFF, BMP, PNG
Font Technologies Intellifont, TrueType, Unicode
Standard Fonts: OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate/Bold/Condensed
Premium Asian Fonts (SD card) Simplified Chinese, Japanese, Korean, Thai
