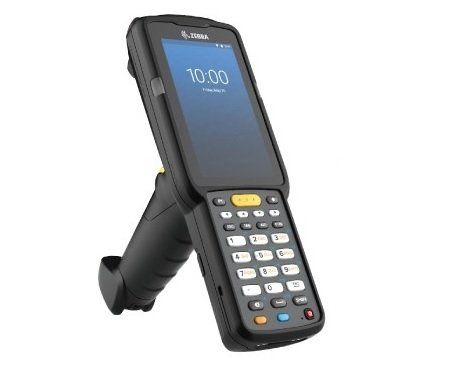

Zebra MC33x

Zebra MC33x

The highly successful Zebra MC33x keypad/touch mobile computer, packed with new features to tackle the ever increasing requirements of today’s on-demand,
e -commerce driven economy.
Get a Quote >>
Availability: Call for availability


Get $200 Trade-In Rebate (learn more)
manufacturer warranty
Product Information

Overview

Speeds up to 2 Mbps improve the performance of Bluetooth peripherals, such as ring scanners, printers and headsets. The result? Faster application response times, faster printing and better voice quality. And battery runtime is also extended, since Bluetooth Low Energy reduces power consumption.

Specifications

Physical Characteristics

Dimensions
MC3300x Straight Shooter (45° Scan and 0° Scan):
7.96 in. L x 2.94 in. W x 1.35 in. D
202.2 mm L x 74.7 mm W x 34.5 mm D

MC3300x Turret/Rotating Head:
8.79 in. L x 2.94 in. W x 1.35 in. D
223.4 mm L x 74.7 mm W x 34.5 mm D

MC3300x Gun/Pistol:
7.96 in. L x 2.94 in. W x 6.45 in. D
202.6 mm L x 74.7 mm W x 163.9 mm D

Weight
MC3300x Straight Shooter (0° Scan):
15.7 oz./445 g
MC3300x Turret/Rotating Head:
16.2 oz./460 g
MC3300x Gun/Pistol:
18.4 oz./522 g
MC3300x (45° Scan):
15.9 oz./450 g

Display
4 in. WVGA (800 x 480), LED backlight, color display

Imager Window
Corning® Gorilla® Glass

Touch Panel
Corning® Gorilla® Glass touch panel with air gap; supports dual input mode with finger, gloved finger and stylus (conductive stylus sold separately)

Power
All models ship with rechargeable Li-Ion, 3.6V, 7000mAh PowerPrecision+ battery; full charge under five (5) hours; hot swap support with temporary WLAN/Bluetooth session persistence
Backwards compatibility with MC3300 2740mAh
(1X) and 5200mAh (2X) batteries

Expansion Slot
User accessible MicroSD with 32GB SDHC and up to 512GB SDXC

Network Connections
USB 2.0 High Speed OTG (Host and Client) WLAN (WiFi), WPAN (Bluetooth)

Notification
Audible tone, multi-color LEDs

Keypad
Numeric (29 key), Function Numeric (38 key), Alpha Numeric (47 key)

Voice
PTT Express and Workforce Connect PTT Pro (Internal speaker, microphone and Bluetooth wireless headset support)

Audio
Built-in speaker and microphone

Buttons
Two programmable side scan keys

Performance Characteristics

CPU
Qualcomm SnapdragonTM 660 octa-core, 2.2 GHz

Operating System
Upgradeable to Android 14

Android Enterprise Recommended (AER)

Memory
Worldwide: 4 GB RAM/32 GB Flash Memory
China only: 4 GB RAM/16 GB Flash Memory

Security
Product is FIPS 140-2 validated. This security feature can be enabled on select configurations through a custom SKU request. Product supports Secure Boot, Verified Boot

User Environment

Operating Temp.
-4° F to 122° F/-20° C to 50° C

Storage Temp.
-40°F to 158°F/-40°C to 70°C

Humidity
5% to 95% RH (Non-condensing)

Drop Specifications
Multiple 6 ft./1.8 m drops to concrete across the operating temperature range per MIL-STD-810G

Tumble Specifications
3,000 3.3 ft. /1.0 m tumbles; meets and exceeds IEC tumble specification

Sealing
IP64 per applicable IEC sealing specifications

Vibration
4g’s PK Sine (5Hz to 2kHz); 0.04g 2/Hz Random (20 Hz to 2 kHz); 60 minutes duration per axis, 3 axis

Electrostatic Discharge (ESD)
+/- 15kV air, +/-8kV contact discharge
+/-8kV indirect contact discharge

Interactive Sensor Technology (IST)

Motion Sensors
3-axis accelerometer with MEMS gyroscope

Data Capture

Scanning
MC3300x Brick/Straight Shooter (0° Scan):
SE965 1D, SE4720/SE4770 2D, SE4850 ERI

MC3300x Turret/Rotating Head:
SE965 1D Laser

MC3300x Gun/Pistol:
SE965 1D, SE4720/SE4770 2D, SE4850 ERI

MC3300x (45° Scan):
SE4770 2D

Rear Camera
13MP color camera with LED flash (optional on Straight Shooter and Turret configurations only)

NFC
ISO14443 Type A and B: FeliCa and ISO 15693 cards. P2P mode and Card Emulation via Host (HCE) support

Wireless LAN

Radio
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v1/w/mc1; Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO

Data Rates
5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps

Operating Channels (depending on Regulatory)
Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52
56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.

Security and Encryption
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE)

Certifications
WFA: 802.11n, 802.11ac, PMF, Wi-Fi Direct, WMM-PS, WMM-AC, Voice Enterprise

Fast Roam
802.11r (Over-The-Air); PMKID caching; Cisco CCKM; OKC

Wireless PAN

Bluetooth Class 2, Bluetooth v5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support

Regulatory

EMI/EMC
FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55024; EN 55032 Class B

Electrical Safety
UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1

RF Exposure
EU: EN 50364, EN 62369-1, EN 50566, EN 62311
USA: FCC Part 2, 1093 OET Bulletin 65
Supplement ‘C’
Canada: RSS-102

Environmental Compliance

• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006


*Specifications are subject to change without notice
