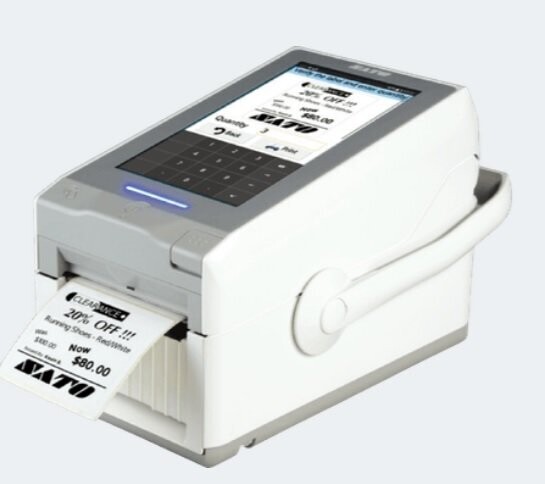

SATO FX3-LX
$0.00
In stock
Product Details
Tablet PC Printer
Smart, Programmable, Independent, the versatile FX3-LX may be used as a desktop-resident or mounted printer, or anywhere throughout your operation for standalone label printing applications.
SATO’s AEP (Application Enabled Printing) programming platform allows the rapid development of unique, business-driven print solutions and user interface. Create custom and intuitive touchscreen prompts that best fulfill your unique requirements.
Overview
The FX3-LX interactive 7-inch full-color touchscreen interface makes operation simple and easy. With its video playback feature, this can eliminate extensive training of your staff on its processes and procedures as well as basic printer functionality or troubleshooting.
Compatible with an array of optional accessories, the FX3-LX was designed for today's user interaction.
- 7” full color touchscreen
- Wireless connectivity, work where it is needed
- Long lasting battery allows for hours of mobile usage
- Optional mounting capabilities and a center-positioned handle for mobility
- SATO AEP (Application Enabled Printing) saves you time and resources to quickly develop printing solutions
- Easily connects to scanners, scales, keyboards and other devices for data entry accuracy
Product Information
PRINT SPECIFICATIONS
Method
Direct Thermal
Mode
Continuous, Tear-off, Cutter, Partial Cutter,
Dispenser, Linerless Tear-off, Linerless Cutter
Print Resolution
305 dpi (12 dots/mm)
Print Speed
AC adapter operation: 152mm/sec (6 ips)
Battery operation: 101mm/sec (4 ips)
Max. Print Area
Width: 3.15” ( 80 mm)
Length: 19.69” (500 mm)
MEDIA SPECIFICATIONS
Sensor Type
Gap (Transmissive) and I-Mark (Reflective)
Media Type
Roll (Continuous, Die-cut, linerless), Fan-fold
Media Size
Continuous
Width:
1.10"(28 mm) ~ 3.35" (85 mm)
Length:
0.75" (19 mm) ~ 19.80" (503 mm)
Tear-Off
Width:
1.10" (28 mm) ~ 3.35" (85 mm)
Length:
0.75" (19 mm) ~ 19.80" (503 mm)
Cutter
Width:
1.10" (28 mm) ~ 3.35" (85 mm)
Length:
0.75" (19 mm) ~ 19.80" (503 mm)
Dispenser
Width:
1.10" (28 mm) ~ 3.35" (85 mm)
Length:
0.75" (19 mm) ~ 19.80" (503 mm)
Linerless
Width:
1.26" (32 mm) ~ 3.23" (82 mm)
Length:
0.79" (20 mm) ~ 19.69" (500 mm)
Linerness Cutter
Width:
1.26" (32 mm) ~ 3.23" (82 mm)
Length:
1.77" (45 mm) ~ 19.69" (500 mm)
Media Thickness
0.0055" - 0.0075" (0.14 - 0.19 mm)
Roll Diameter
4.13" (105 mm) on 1" (25 mm) ID Core
3.54" (90 mm) on 1.5" (40 mm) ID Core
Wind Direction
Face-in/ Face-out, No setting change required.
COMMUNICATION INTERFACES SPECIFICATIONS
Standard
USB 2.0 (Type A) x 3, USB 2.0 (Type B), NFC
USB + LAN Model
USB 2.0 (Type A) x 3, USB 2.0 (Type B), Ethernet
(IPv4/v6), NFC, LAN 10/100/1000
Optional Wireless LAN/Bluetooth® Kit
WiFi®: WiFi Certified™ A/B/G/N/AC, WiFi
Direct®, Dual Band, (2.4GHz/ 5GHz) Bluetooth:
version 4.1, MFi certified
MEMORY & PROCESSING
Printer Memory
4GB Flash, 1GB RAM
Processor
1GHz ARM Cortex-A9
USER FRIENDLY SUPPORT TOOLS
Large Status LED
Blue/Red
Multi National Language Support
47 Languages and Scalable Print Fonts
31 Languages for LCD Menu
Operation and Customer Videos
14 preset videos including media loading, parts
replacement, option installation, cleaning etc.
Optional 1 GB space available for storing and
playing customer videos with sound. (onboard
speaker)
Display Panel
7" TFT Full Color touch screen LCD (480 x 800)
Remote Maintenance
SNMP Ver. 3, HTTPs
Emulation
Auto Detect, SBPL®, SZPL®, SDPL®, SIPL®,
STCL®, SEPL®
Peripheral Devices
Connect peripheral devices like scanner,
keypad and keyboard directly to the printer for
data input.
Device Management
SOS (SATO Online Services)
FONT SPECIFICATIONS
Internal Fonts
Standard Bitmap & Scalable Fonts
10 Bitmap SATO Fonts, 4 POP fonts, 39
Scalable SATO Fonts, Multi-National Language
Support (47 Languages/Unicode), Single and
Double Byte Fonts (Korean, Chinese, Japanese)
ACCESSORIES
Optional
Cutter, Partial Cutter, Linerless Kit,
WLAN / Bluetooth Kit, Battery Mount Kit,
Lithium ion Battery Kit, Battery Charger, Cradle
Kit, Wall Mount Kit
BARCODE SYMBOLOGIES
Barcodes
Linear
Code 39, Code 93, Code 128, CODABAR
(NW7), EAN 8/13, GS-1 Databar™, GS-1 128
(UCC/ EAN 128), Interleaved 2/5, Industrial
2/5, JAN 8/13, Matrix 2/5, MSI, Bookland,
Postnet™, UPC-A/E, Customer Barcode, Postnet, USPS code
2D Symbologies
Aztec, PDF 417, Micro PDF, Maxi Code, GS1
Data Matrix, QR Code, Micro QR Code and
Composite Symbologies
OPERATING & ENVIRONMENT CHARACTERISTICS
Electrical Requirements
Universal Auto-ranging Power Supply, 100-240
VAC +/-10%, 50/60 Hz
Standards & Agency Approvals
FCC PART 15 SUBPARTS B/C/E, MET/cMET,
JISZ 2801, CE Marking, IEC60950-1,
EN60950-1, EN55022, EN55032, EN55024,
EN61000-3-2/3-3, EN 301 489-1/-3/-17, EN 300
330-2/-1, RE, CCC, SRRC, IDA, SIRIM, NTC,
SDPPI, RCM
Environment
Operating
Label: 32 to 104°F (0 to 40 ºC), 30-80 % RH
(Without Condensation)
Label (Dispenser): 32 to 95°F (0 to 35 ºC),
30-75 % RH (Without Condensation)
Linerless: 41 to 95°F (5 to 35 ºC),
30-75 % RH (Without Condensation)
Storage
41 to 140°F (5 to 60 ºC), 30-90 % RH
(Without Condensation)
Battery (Optional)
14.4V (1950 mAh) Lithium-ion Smart Battery
*Needs battery mount kit
PHYSICAL CHARACTERISTICS
Dimensions (Standard Model)
Width: 5.19" (132 mm)
Depth: 8.85" (225 mm)
Height: 6.33" (161 mm)
Dimensions (With Battery Mount Kit)
Width: 5.19" (132 mm)
Depth: 8.85" (225 mm)
Height: 7.08" (180 mm)
Weight
Standard Model: 5.5 lbs. (2.5kg)
With Battery Mount Kit: 6.6 lbs. (3.0 kg)
Durability
Drip/Dust Proof IPX2, IK06 and Antimicrobial
Plastic Housing
