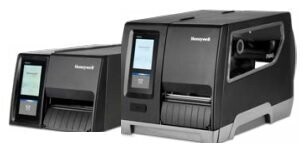

Honeywell PM45C
$0.00
In stock
Product Details
The Honeywell PM45C is built for smart label solutions that help enterprises enhance automation and intelligence in manufacturing and supply chain management for high operating efficiency.
Product Information
PHYSICAL CHARACTERISTICS
PM45:
L x H x W: 483 mm x 295mm x 284 mm
(19.0 in x 11.11.6 in x 11.2 in)
Weight: 13.2 kg (29.1lbs)
PM45c:
L x H x W: 432 mm x 181 mm x 253 mm
(17.0 in x 7.1 in x 10.0 in)
Weight: 12.6 kg (27.7 lbs)
PM45c with Mega Door
L x H x W: 500 mm x 245 mm x 253 mm
(19.7 in x 9.6 in x 10.0 in)
Weight: 12.8 kg (28.0 lbs)
PM45/45C PRINT SPECIFICATIONS
Max.Width at 203 dpi: 108 mm (4.25 in)
Max.Width at 300 dpi: 105.7 mm (4.17 in)
Max.Width at 406 dpi: 104 (4.09 in)
Max.Width at 600 dpi: 105.6 mm (4.16 in)
Max.length at 203 dpi: 4.8 m (189 in)
Max.length at 300 dpi: 2.2m (85in)
Max.length at 406 dpi: 1.2 m (47.2 in)
Max.length at 600 dpi: 0.55m (22in)
PM 45/45C MEDIA SPECIFICATION
Type: Labels and Tags and Linered media
Max./Min.Width: 114/19 mm (4.5/0.75 in)
Thickness: 3 mil to 10.4 mil
Configuration: Roll-fed or fan-fold
Media Sensing: Gap, Notch, Black mark,
Continous, Media low, Media end
Other sensing: Label Taken sensing,
Ribbon Low/End sensing, Head lift sensing
Label Roll Max.Diameter: 152 mm (6 in) for
PM45c long door models; 213 mm (8.38 in)
for all other models of PM45/PM45c
Label Roll Core ID: 38-76 mm (1.5-3 in)
RIBBON SPECIFICATION:
Type: Wax, mid-range and resin
PM45:
PM45 Roll Max. Diameter: 80 mm
(3.15 in), capacity of 450 m (1,476 ft)
PM45c:
PM45c Roll Max. Diameter: 61 mm
(2.40 in), capacity of 229 m (751 ft)
Media:
Ribbon Core ID: 25mm (1 in)
Genuine Honeywell Media:
products/productivity/printer-supplies
INTERFACES
Standard:
Ethernet 10/100/1000 Mbps
USB 2.0 Host (x2 PM45, x1 PM45C)
USB 2.0 Device
RS-232, up to 115.2 KB/s
Optional:
Parallel Interface (IEEE 1284)
Industrial interface – eight digital
in/out, four analog relays, one
RS232/422/485 port
Applicator Interface – Ext Error 8-pin miniDIN, Z-style standard DB15 port, S-style
standard 14-pin Centronics, Ext Power
6-pin mini-DIN
RFID – Supports EPC Class 1 Gen2,
18000-6C. Radio configured to comply
with local UHF RFID regulations including
FCC and ETSI. Contact local representative
for availability in particular region.
Supported Network Protocols:
TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/
LPD, Telnet/SSH, FTP/SFTP, BOOTP,
DHCP, HTTP/HTTPS, SNMPv1/2c/3,
SNMP-MIBII supported – over UDP/IP
(private enterprise MIB included), SMTP
Supports IPv4 and IPv6
SOFTWARE
Printer Command Languages:
Fingerprint (FP)
Direct Protocol (DP)
Intermec Printer Language (IPL)3
ZSim2 (ZPL-II), DPL, XML-enabled for SAP®
AII and Oracle® WMS, PDF, C#
Applications/Drivers:
InterDriver Windows® printer driver, CUPS
driver for Linux, Honeywell Device Types
for SAP, Honeywell label design and print
package
Smart Printing Languages:
C# for Printers: Honeywell Smart
Printing Developer Resource Kit; write
apps with .NET- compatible development
environments.
Configuration and Device Management
Support (optional):
OpIntel -
PrintSet 5 for printer configuration;
sophisticated web interface for
configuration, upgrades and 1:1
management; Print Set MC (Android™ and
Apple® iOS) for printer configuration via
Bluetooth LE only
BARCODES/FONTS/GRAPHICS
Barcode Symbologies: All major 1D and 2D
symbologies are supported
Standards Supported: UPC/EAN Shipping
Container, UCC/EAN 128, Serial Shipping
Container, MH10.8 Shipping Label, AIAG
(shipping parts label), OGMARS, POSTNET,
HIBCC, ISBT 128, GM1724, UPS Shipping
Label, Global Transport Label
FONTS
Monotype font engine
Non-Latin fonts available through WTLE
GRAPHICS
Supports PCX, PNG, GIFand
BMP file formats.
Other formats supported with Label
Generation Tools.
MEMORY
Standard: 512 MB Flash memory, 256 MB
SDRAM, Multi-GB USB memory device
(FAT16/FAT22)
User Partitioning: 256MB
USER INTERFACE
Full Touch UI, Icon UI
USER INTERFACE LANGUAGES
On Full Touch LCD and Web Interface:
English, Russian, German, French,
Portuguese, Spanish, Italian, Korean,
Thai, Japanese, Simplified and
Traditional Chinese
WIRELESS CONNECTIVITY
WLAN: IEEE 802.11 a/b/g/n/ac;
Wi-Fi certified, 1x1 SISO
Additional WLAN Features:
802.11d/e/h/i/k/r
Security: OPEN, WEP, WPA/WPA2
(Personal and Enterprise),
Supported EAP: TLS, PEAP, TTLS, PWD,
LEAP, FAST
Bluetooth: V5.0 Bluetooth and BLE
Supported
WWAN: WWAN Radio
CAT4 LTE Modem
MIMO - Main/Rx-diversity
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/
B13/ B18/B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Slot: Micro Sim Card slot x 1
PRINT SPEED
At 203 dpi: 50-350 mm/s (2-14ips)
At 300 dpi: 50-300 mm/s (2-12ips)
At 406 dpi: 50-250 mm/s (2-10ips)
At 600 dpi: 50-150 mm/s (2-6ips)
PRINT RESOLUTION
At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
At 406 dpi: 16 dots/mm
At 600 dpi: 23.6 dots/mm
*Specifications are subject to change without notice
