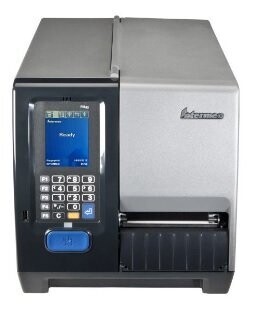

Honeywell PM43C
$0.00
In stock
Product Details
The Honeywell PM43 and even more compact Honeywell PM43c mid-range industrial printers deliver fast print speeds, drop-in deployment, advanced connectivity and proven reliability.
Product Information
DESCRIPTION
Industrial mid-range, direct thermal and
thermal transfer label, ticket and tag printer.
Also available with RFID.
PHYSICAL CHARACTERISTICS
PM43:
L x H x W: 483 mm x 295 mm x 284 mm
(19.0 in x 11.6 in x 11.2 in)
Weight: 15.82 kg (34.88 lb)
PM43c:
L x H x W: 431 mm x 181 mm x 253 mm
(17.0 in x 7.1 in x 9.9 in)
Weight: 12.5 kg (27.65 lb)
PM43c with Dome Door:
L x H x W: 500 mm x 245 mm x 253 mm
(19.6 in x 9.6 in x 9.9 in)
Weight: 12.71 kg (28.02 lb)
PM23c:
L x H x W: 431.84 mm x 181 mm x 205.5
mm (17 in x 7.13 in x 8.09 in)
PM23c with Dome Door:
L x H x W: 500.22 mm x 244.87 mm x
205.5 mm (19.69 in x 9.64 in x 8.09 in)
PM23c with Bag Tag Door:
L x H x W: 431.84 mm x 207 mm x 205.5
mm (17 in x 8.15 in x 8.09 in)
Weight: 9.5 kg (21 lb)
PM43/43C PRINT SPECIFICATIONS
Max. Width at 203 dpi: 108 mm (4.25 in)
Max. Width at 300 dpi: 106 mm (4.17 in)
Max. Width at 406 dpi: 104 mm (4.09 in)
Max. Length at 203 dpi: 4.8 m (15.75 ft)
Max. Length at 406 dpi: 1.2 m (3.94 ft)
PM23C PRINT SPECIFICATIONS
Max. Width at 203 dpi: 56 mm (2.2 in)
Max. Width at 300 dpi: 56 mm (2.2 in)
Max. Width at 406 dpi: 64 mm (2.5 in)
RFID STANDARDS & FREQUENCIES
18000-6C / EPC Class 1 Generation 2
865–928 MHz radio configured to comply
with local UHF RFID regulations including
FCC and ETSI. Contact local representative
for availability in particular regions.
PRINT SPEED
At 203/300 dpi: 100–300 mm/s
(4–12 ips)
At 406 dpi: 100–250 mm/s (4–10 ips)
PRINT RESOLUTION
At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
At 406 dpi: 16 dots/mm
MEDIA
Type: Labels and Tags, Linerless and
Linered media
PM43/43c Max./Min. Width: 114/19 mm
(4.5/0.75 in)
Thickness: 3 mil to 10.4 mil
PM23c Max./Min. Width: 68/19 mm
(2.7/0.75 in)
Configuration: Roll-fed or fanfold
Sensing: Gap, notch, black mark,
continuous
Label Roll Max. Diameter: 152 mm (6 in)
for long door models; 213 mm (8.38 in) for
all other models
Label Roll Core: 38–76 mm (1.5–3 in)
Type: Ribbons
PM43 Roll Max. Diameter:
80 mm (3.15 in), approx. 450 m (1,476 ft)
PM23/43c Roll Max. Diameter:
61 mm (2.40 in), 229 m (751 ft)
Core ID: 25 mm (1 in)
Type: Wax, mid-range, resin
Genuine Honeywell Media:
INTERFACES
Standard:
Ethernet 10/100 Mbps
RS-232, up to 115.2 KB/s
Supported Serial Protocols:
Fingerprint/Direct Protocol: XON/
XOFF, ENQ/ACK, DSR/DTR, RTS/CTS
IPL: XON/XOFF, Honeywell Std.
Protocol
USB 2.0
USB Host (X1 on PM23c/PM43c,
X2 on PM43)
Optional:
Parallel IEEE 1284
Industrial Interface (8 digital
in/out, 4 analog relays,
1 RS-232/422/485 port)
Dual Serial ports RS-232, RS-422,
RS-485 and 20 mA Current Loop
Dual USB Host
Wireless:
IEEE 802.11 a/b/g/n + Bluetooth
Wi-Fi Certified, CCX (Cisco)
version 4 Certified
Static WEP (64-bit and 128-bit), Dynamic
WEP (TLS, TTLS, PEAP, LEAP, EAPFAST), WPA (TKIP/CCKM Personal and
Enterprise), WPA2 (AES-CCMP/CCKM
Personal and Enterprise)
Multiple industrial antenna options for
maximized coverage
Supported Protocols:
TCP/IP suite (TCP, UDP, ICMP, IGMP),
LPR/LPD, FTP, BOOTP, DHCP, HTTP,
SNMPv1/2c/3, SNMP-MIBII supported
– over UDP/IP (private enterprise MIB
included), SMTP
Supports IPv4 and IPv6
SOFTWARE
Printer Command Languages:
IPL, DP, ZSim2 (ZPL-II), DPL
XML-enabled for SAP® AII
and Oracle® WMS
Applications/Drivers:
InterDriver Windows® printer driver
CUPS driver for Linux
Honeywell Device Types for SAP
Honeywell label design and
print package
Smart Printing Languages:
Honeywell C# for Printers: Smart
Printing Developer Resource Kit
Write apps with .NET-compatible
development environments
Honeywell Fingerprint: Use Honeywell
Fingerprint Application Builder
*Specifications are subject to change without notice
