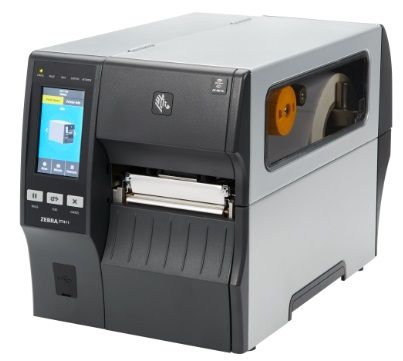

Zebra ZT411 RFID

Zebra ZT411 RFID with a range of media handling options that can be easily installed in minutes. Two open media slots accommodate additional communication options. And, the open architecture, robust processing power and memory can support firmware upgrades and new Print DNA tools for years to come.

Get a Quote >>

Availability: Call for availability

Includes Full Manufacturer's Warranty

Product Information

More Standard Features

Reduce RFID Media Costs

You can count on the Zebra ZT400 Series to print a variety of different label formats on a variety of different media types. When RFID-enabled, the 4-inch Zebra ZT411 and 6-inch Zebra ZT421 can print and encode labels as small as 0.6 in./16 mm. And, the ZT411 can print up to 600 dpi for extremely crisp resolution. The Zebra ZT411 RFID, available in an on-metal version, is the only dedicated option for printing and encoding on-metal tags and labels.

Printer Specifications

RFID

Integrated RFID system is user-upgradable in the field
Optional field-upgradeable on-metal version available (ZT411 only)
Prints and encodes tags with a minimum pitch of 0.6 in./16 mm
Supports tags compatible with: UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID protocols
Compliant with Global RFID radio to support multinational deployments
Automatically eliminate complex RFID placement guidelines with adaptive encoding technology
Variable inlay placement supports a range of inlay positions for maximum media flexibility
Track performance with RFID job-monitoring tools
Support for industry standard multi-vendor chip-based serialization (MCS)
Supports block permalocking of user memory compatible with ATA Spec 2000
Integrated RFID reader/encoder

Standard Features

Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
Side-loading supplies path for simplified media and ribbon loading
Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host
4.3-inch color touch display with intuitive menu for quick operation and settings management
Bi-colored status LEDs for quick printer status
ENERGY STAR® qualified

Physical Characteristics

Dimensions (closed)

ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H

495 mm L x 269 mm W x 324 mm H

ZT421: 19.5 in. L x 13.25 in. W x 12.75 H

495 mm L x 336 mm W x 324 mm H

Weight

ZT411: 36 lbs./16.33 kg

ZT421: 40 lbs./18.14 kg

Printer Specifications

Resolution

203 dpi/8 dots per mm

300 dpi/12 dots per mm (optional)

600 dpi/24 dots per mm (optional for ZT411 only)

Memory

256 MB SDRAM memory

512 MB on-board linear Flash memory

Maximum Print Width

ZT411: 4.09 in./104 mm

ZT421: 6.6 in./168 mm

Maximum Print Speed

ZT411: 14 ips/356 mm per second

ZT421: 12 ips/305 mm per second

Media Sensors

Adjustable dual media sensors: transmissive and reflective

Print Length

ZT411

203 dpi: 157 in./3988 mm

300 dpi: 73 in./1854 mm

600 dpi: 39 in./991 mm

ZT421

203 dpi: 102 in./2591 mm

300 dpi: 45 in./1143 mm

Media Characteristics

Maximum Media Width

ZT411

1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter

1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind

ZT421

2.00 in./51 mm to 7.0 in./178 mm tear/cutter

2.00 in./51 mm to 6.75 in./171 mm peel/rewind

Maximum Media Roll Size

8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core

Thickness

0.0023 in./0.058 mm to 0.010 in./0.25 mm

On-metal option: up to 0.059 in./1.5 mm

Media Types

Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length

1476 ft./450 M

Width

ZT411: 2.00 in./51 mm to 4.33 in./110 mm

ZT421: 2.00 in./51 mm to 6.85 in./174 mm

Core I.D.

1.0 in./25 mm

Environmental

Operating Temperature

Thermal transfer: 40º F to 104º F/5º C to 40º C

Direct thermal: 32º F to 104º F/0º C to 40º C

Storage/Transportation Temperature

-40º F to 140º F/-40º C to 60º C

Operating Humidity

20% to 85% non-condensing

Storage Humidity

5% to 85% non-condensing

Firmware

ZBI 2.0™ — Optional powerful programming language that lets printers run standalone applications, connect to peripherals, and much more.

ZPL and ZPL II® — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.

EPL and EPL2™ — Eltron® Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)

Electrical

Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz

ENERGY STAR qualified

Options and Accessories

RFID

Field-installable on-metal RFID kit available (ZT411 only, not available on the 600 dpi model)

Connectivity

Two open communication slots to add internal cards for:

Dual band 802.11ac Wi-Fi and Bluetooth
Parallel (bi-directional interface)
10/100 Ethernet
Applicator interface

Media Handling

Rewind: Internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (factory installed only)
Peel: Front-mount, passive peel option
Peel: Liner take-up — additional full-roll liner take-up spindle accommodates standard printer base
Cutter: Front-mount guillotine cutter and catch tray
1 in. I.D. Core media supply hanger (ZT411 only)
Ink-side in ribbon supply spindle (ZT411 only)

Keyboard Display Unit

ZKDU™ keyboard display units for stand-alone printing applications

Fonts and Graphics

16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts

Asian and other international scalable and smooth bitmapped fonts

Unicode™: For multi-language printing

Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats

IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control

Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0

64 MB user-available non-volatile memory storage for downloadable objects

8 MB user-available SDRAM

Barcode Symbologies

Linear Barcodes

Code 11, Code 39, Code 93, Code 128 with subsets

A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code

Two Dimensional Barcodes

Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR

Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Agency Approvals

Safety and EMC

IEC 62368, Class B, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3

Product Markings

Including, not limited to, cTUVus, CE, FCC, ICES-003(B), VCCI, RCM, NOM, S-Mark, CCC, EAC, BSMI, KCC, SABS, In-Metro, BIS.

Print DNA Software Solutions

Development Tools

With faster, easier and smarter integration of Zebra printers with your devices and applications, your Zebra printing solutions are up and running in less time, with less cost.

Management Tools

Minimize IT effort and maximize IT control with Print DNA management tools — the easy way to add and manage any number of printers, anywhere — from a handful of printers to thousands of printers all around the world.

Productivity Tools

Reach new levels of productivity with innovations that streamline tasks and workflows, optimize device performance and solve tomorrow’s printing problems today.

Visibility Tools

Regardless of whether or not you have an existing Mobile Device Management solution in place, robust visibility tools provide unparalleled insight into printer health, usage and performance.

Print DNA Software

This printer is supported by our powerful Print DNA suite of applications, utilities and developer tools that give our printers better performance, simplified remote manageability, and easier integration.

Print DNA features may vary by model and a Support Contract may be required.

*Specifications are subject to change without notice

Zebra Link-OS

Link-OS is the one-of-a-kind enterprise printer operating system found in Zebra’s latest line of printers. Featuring advanced connectivity capabilities, extensive device management and advanced privacy controls, no other printers deliver this level of intelligence and innovation. Printers running Link-OS are supported by a suite of powerful Applications, Utilities and Developer Tools, making it simple to create robust, adaptable and intelligent print solutions.
