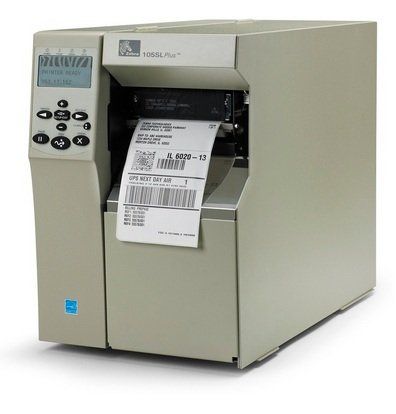

Zebra 105SL Plus

When economical and reliable high-performance printing is required, the rugged 105SLPlus is the right choice. Building on the legacy of Zebra’s proven high performance printer design, the 105SLPlus provides high speed printing, a multitude of connectivity options, and all-metal construction to withstand tough use.
Get a Quote >>
MFG Part #(s): 102-801-00210, 102-8K1-00210

Availability: In Stock

Need repair?  Get FAST Onsite Repair for the Zebra 105SL Plus click here.

Affordable coverage plans. Keep your Zebra 105SL Plus running  click here.

Looking for refurbished Zebra printers? click here.
Product Information

Overview

When economical and reliable high-performance printing is required, the rugged 105SLPlus is the right choice. Building on the legacy of Zebra’s proven high performance printer design, the 105SLPlus provides high speed printing, a multitude of connectivity options, and all-metal construction to withstand tough use.

Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Print methods: Thermal transfer or direct thermal
Full-function front panel and large multilingual back-lit LCD display — with user-programmable password protection
Thin film printhead with Element Energy Equalizer™ (E3™) for superior print quality
8 MB Flash memory—including 2 MB user-available non-volatile memory storage for downloadable objects

More Standard Features

  • Print methods: Thermal transfer or direct thermal
  • Resolution: 203 dpi or 300 dpi
  • Full-function front panel and large multilingual back-lit LCD display — with user-programmable password protection
  • Thin film printhead with Element Energy Equalizer™ (E3™) for superior print quality
  • 8 MB Flash memory—including 2 MB user-available non-volatile memory storage for downloadable objects
  • Serial RS-232 and bi-directional parallel ports—with auto detect
  • USB 2.0
  • Dual media sensors—transmissive and reflective, selectable through software or front panel
  • Internal ZebraNet 10/100 Print Server—supports 10Base-T, 100Base-TX, and fast Ethernet 10/100 auto-switching networks.

Printer Specifications

Resolution:
  • 203 dpi (8 dots/mm)
  • 300 dpi (12 dots/mm)
Memory:
  • Standard: 16 MB SDRAM; 8 MB Flash
Print width:
  • 4.0″ (102 mm)
Print length:
  • 203 dpi: 105″/3810 mm (with standard memory)
  • 300 dpi (optional): 100″/2540mm (with standard memory)
Print speed:
  • 203 dpi: 12″/305 mm per second
  • 300 dpi: 10″/254 mm per second

Media Characteristics

Media types: continuous, die-cut, or black mark, notch Media thickness (label and liner): 0.003″/0.076 mm to 0.012″/0.305mm Maximum media roll size: 8.0″/203 mm O.D on a 3″/76 mm I.D. core Media width (label and liner): 0.79″/20 mm to 4.5″/114 mm Maximum non-continuous label length: 39″/991 mm

Ribbon Characteristics

  • Standard Lengths: 1476′/450 m or 984/300 m
  • Provides 2:1 and 3:1 media roll to ribbon ratios
  • Maximum ribbon roll size: 3.2′/81.3 mm OD on a 1.0′/25.4 mm I.D. core
  • Ribbon wound coated-side out
  • Ribbon width: 0.79′/20 mm to 4.33′/110 mm

Operating Characteristics

Environmental

Operating environment:
  • Thermal transfer = 40° F/5° C to 105° F/40° C
  • Direct thermal = 32° F/0° C to 105° F/40° C
  • 20% to 85% non-condensing relative humidity
Storage/Transportation environment:
  • – 40° F/-40° C to 140° F/60° C
  • 5% to 85% non-condensing relative humidity
Electrical
  • Universal power supply with power-factor correction 100-240 VAC, 47–63 Hz
Agency Approvals
  • IEC 60950-1, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
  • Product Markings: cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark(Arg), CCC, GOST-R, BSMI, KCC, and UkrSEPRO

Physical Characteristics

Width: 10.31″ (261.9 mm) Height: 15.5″ (393.7 mm) Depth: 20.38″ (517.5 mm) Weight: 50 lbs (22.7 kg)

Related Products

Options
  • 300 dpi
  • Cutter and catch tray
  • Media rewind spindle — internal finished roll rewind or passive-peel with liner take-up spindle 64 MB
  • On-Board Linear Flash Memory (factory installed only)
  • Scalable and international fonts
  • Communication and Interface Capabilities
  • ZebraNet® b/g Print Server (internal)

Programming Languages

Core programming languages: XML,ZPL I, ZPL II

Bar Codes/Symbologies

  • Barcode ratios: 2:1, 7:3, 5:2, and 3:1
  • Linear barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
  • 2-dimensional bar codes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Fonts and Graphics
  • Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
  • Smooth scalable font Ø (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
  • IBM Code Page 850 International Characters

*Specifications are subject to change without notice
