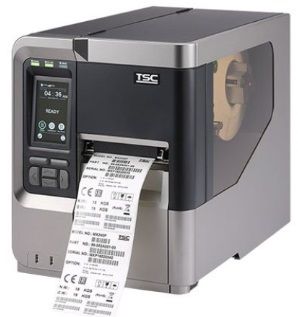

TSC MX241P



TSC MX241P

The TSC MX241P Series industrial thermal printer is ruggedly built for high volume, high quality label printing. Featuring one of the fastest print speeds in its class, the TSC MX241P Series boosts productivity with quicker processing power, communications and printing speeds. It is ideal for applications that include manufacturing, logistics, shipping, and product identification.
Get a Quote >>
Availability: Call for availability
manufacturer warranty
Product Information

Overview

The TSC MX241P Series features three different models. The TSC MX241P prints 203 dpi at speeds up to an amazing 18 ips.

Capable of seamless connectivity, the TSC MX241P series supports 802.11 a/b/g/n/ac Wi-Fi and Ethernet enabling dynamic remote printer
management powered by SOTI Connect and TSC Console that turns the barcode label printer into a connected network. This series will
empower you to meet the needs of around-the-clock, mission-critical labeling applications.

Printer Specifications

Resolution
8 dots/mm (203 DPI)

Printing method
Thermal Transfer and Direct Thermal

Max. print speed
457mm (18”)/second

Max. print width
104 mm (4.09”)

Max. print length
25,400 mm (1000”)

Enclosure
Die-cast print mechanism and base with bi-fold metal cover with large clear media view window

Physical dimension
300 mm (W) x 393 mm (H) x 510 mm (D)
11.81” (W) x 15.47” (H) x 20.08” (D)

Weight
18 kg (39.68 lbs)

Label roll capacity
203.2 mm (8”) O.D.

Internal rewinder (full roll)
Internal rewinder kit (5” O.D.) (dealer option)

Ribbon
600 meter long, max. OD 90 mm, 1” core (ink coated outside/inside)

Ribbon width
25.4 ~ 114.3 mm (1” ~ 4.5”)

Processor
32-bit RISC CPU

Memory
• 512 MB SDRAM, 512 MB Flash memory
• microSD Flash memory card reader for Flash memory expansion, up to 32 GB

Interface
• RS-232
• USB 2.0
• Internal Ethernet, 10/100 Mbps
• USB host *2 (Front side), for scanner or PC keyboard
• Centronics
• GPIO + Centronics (dealer option)
• Internal Bluetooth MFi 5.0 (factory option)
• 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module
 (user option)

Power
Internal universal switching power supply
• Input: AC 100-240V, 4-2A, 50-60Hz
• Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W

LCD
16 bits Color, 480 x 272 pixel, with back light, Resistive Touch Screen

Operations switch, button
1 power switch, 6 operation buttons

Sensors
• • Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (Bottom or Top black mark sensor switchable and position adjustable)
• Ribbon end sensor (transmissive)
• Head open sensor
• Ribbon end sensor
• Ribbon encode sensor
• Media capacity sensor

Real time clock
Standard

Internal font
• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with CG Triumvirate Bold Condensed scalable font

Barcode
1D barcode
Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A,
UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post
2D barcode
PDF-417, Maxicode, DataMatrix, QR code, Aztec

Font & barcode rotation
0, 90, 180, 270 degree

Printer language
TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)

Media type
Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound)

Media width
20 mm ~ 114 mm (0.78” ~ 4.49”)

Media thickness
0.076 ~ 0.305 mm (2.99 ~ 12.01 mil)

Media core diameter
76.2 mm (3”)

Label length
3 ~ 25,400 mm (0.1” ~ 1,000”)

Environment condition
Operation: 0~ 40˚C (32 ~ 104˚F), 25~85% non-condensing
Storage: -40 ~ 60 ˚C (-40 ~ 140˚F), 10~90% non-condensing

Safety regulation
FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV, CCC, KC, BIS, BSMI, EAC, Argentina S mark, Mexico CoC,
ENERGY STAR®

Environmental concern
Comply with RoHS, WEEE

Accessories
• Windows labeling software CD disk
• Quick start guide
• USB port cable
• Power cord

RTC & Buzzer
Standard

Limited warranty
• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first

Factory option
• Internal full rewinding kit ( Max. 8“ OD )
• Internal Bluetooth 5.0 MFi

Dealer option
• Peel off module assembly
• Regular guillotine cutter
• Rotary heavy-duty cutter
• GPIO (DB15F) + Parallel interface

User option
•  KP-200 Plus keyboard display unit
• 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module
• Universal cutter tray

*Specifications are subject to change without notice
