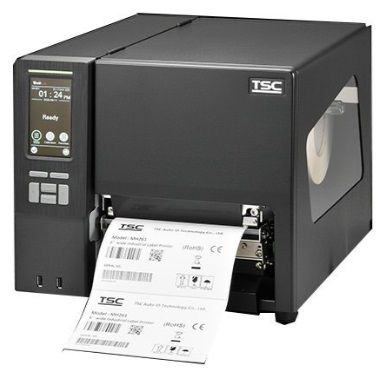

TSC MH641T



TSC MH641t

The TSC MH641t is TSC's mainstream industrial barcode label printer. It brings new features to those looking for solutions to address evolving business challenges from growing production line demands to increasing operational complexities.
Get a Quote >>
Availability: Call for availability
manufacturer warranty
Product Information

Overview

The TSC MH641t Series is equipped with sophisticated TSC Sense Care supported by SOTI Connect and TSC Console remote printer management to monitor printer status and give warning messages to ensure maximum productivity and avoid downtime.

Capable of seamless connectivity, the MH241/MH261 Series is supported by both Apple-certified MFi Bluetooth 5.0 or 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module that turns the barcode label printer into a connected network.

Printer Specifications

Resolution
24 dots/mm (600 DPI)

Printing method
Thermal Transfer and Direct Thermal

Max. print speed
152 mm (6”)/second

Max. print width
104 mm (4.09”)

Max. print length
2540 mm (100”)

Enclosure Die-cast print mechanism and base with bi-fold metal cover with large clear media view window

Physical dimension
276 mm (W) x 326 mm (H) x 502 mm (D)
10.87” (W) x 12.83” (H) x 19.76” (D)

Weight
15.70 kg (34.61 lbs)

Label roll capacity
203.2 mm (8”) O.D.

Internal rewinder (full roll)
Internal rewinding kit (5” O.D.) (dealer option)

Ribbon
600 m long, max. O.D. 90 mm, 1” core (ink coated outside or inside)

Ribbon width
25.4 mm ~ 114.3 mm (1” ~ 4.5”)

Processor
32-bit RISC CPU

Memory
• 512MB Flash memory
• 256MB SDRAM
• microSD Flash memory card reader for Flash memory expansion, up to 32 GB

Interface
• RS-232
• USB 2.0 (High speed mode)
• Internal Ethernet, 10/100 Mbps
• USB host *2 (Front side), for scanner or PC keyboard
• GPIO (DB15F) + Centronics (factory option)
• Internal Bluetooth 5.0 MFi (factory option)
• Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option)

Power
Internal switching power supply
• Input: AC 100-240V, 4-2A, 50-60Hz
• Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W

LCD display/Operation buttons
• Multi-language selectable
• 6 operation buttons
• 1 LED (with 2 LEDs Green & Red)

Sensors
• Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (Bottom or Top black mark sensor switchable and position adjustable)
• Head open sensor
• Ribbon encoder sensor
• Ribbon end sensor
• Media near end sensor

Real time clock
Standard

Internal font
• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with CG Triumvirate Bold Condensed scalable font

Barcode
1D barcode
Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A,
UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post
2D barcode
PDF-417, Maxicode, DataMatrix, QR code, Aztec

Font & barcode rotation
0, 90, 180, 270 degree

Printer language
TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)

Media type
Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label
(outside wound)

Media width
20 ~ 114 mm (0.79" ~ 4.5")

Media thickness
0.06 ~ 0.28 mm (2.36 ~ 11 mil)

Media core diameter
3.81 mm / 76.2 mm (1.5”/ 3”)

Label length
5 ~ 11,430 mm (0.20” ~ 450”)

Environment condition
• Operation: 0 ~ 40˚C (32 ~ 104˚F), 25~ 85% non-condensing
• Storage: -40 ~ 60 ˚C (-40 ~ 140˚F), 10~ 90% non-condensing

Safety regulation
FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV, CCC, KC, BIS, BSMI, EAC, Argentina S mark, Mexico CoC,
ENERGY STAR®

Environmental concern
Comply with RoHS, WEEE

Accessories
• Windows labeling software CD disk
• Quick start guide
• USB port cable
• Power cord

RTC & Buzzer
Standard

Limited warranty
• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first

Factory option
• GPIO (DB15F) + Parallel interface
• Internal Bluetooth 5.0 MFi*

Dealer option
• Regular cutter (full cut guillotine cutter)
• Heavy-duty cutter (full cut guillotine cutter)
• Care label cutter
• 1” I.D. core media spindle
802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module
(including slot-in housing) *
• Peel-off kit
• Internal rewinder kit (5” O.D.)

User option
• Basic cutter tray
• Advanced cutter tray
• Universal cutter tray
• KP-200 Plus keyboard display unit

*Specifications are subject to change without notice
