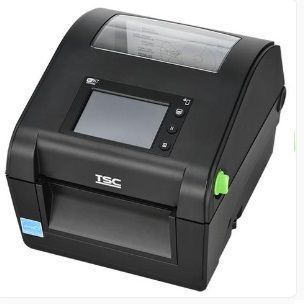

TSC DH340T



TSC DH340T

The TSC DH340T 4-inch Desktop Barcode Printer is versatile and flexible for diverse printing requirements. The TSC DH340T versatility enables printing a wide range of difficult labels, including thick, tiny, and long labels and certain types of vertical market labels.
Get a Quote >>
Availability: Call for availability
manufacturer warranty
Product Information

Overview

The TSC printer language emulation makes the TH DH Series plug-and-play. Its firmware automatically identifies major printer languages and begins printing immediately without changing label templates. The TH DH Series minimizes downtime during daily operations through comprehensive printer management tools (Internal Embedded Webpage, virtual control panel, TSC Console, and SOTI Connect), printer shutdown prevention, and supports network security configurations to manage printers efficiently.

The TH DH Series scales up applications with a wide media width, high-precision printing, and several addable future-proof options. This empowers businesses to adapt to changing requirements for present and future operations. The eco-friendly printer features 100% recyclable packaging and plastic printer casing. Over 90% of printer components are recyclable at the printer’s end-of-life, reducing environmental impact.

Printer Specifications

Resolution
300 dpi (12 dots/mm)

Print Method
Direct thermal only

Display
Color LCD with buttons

Hardwire Connectivity
Ethernet
Serial RS-232
USB
USB Host

Wireless Connectivity
Bluetooth
Bluetooth MFi
Wi-Fi
Wi-Fi with Bluetooth

Enterprise Printer Management
TSC Console
SOTI Connect (license required)

Type
Desktop

Max. Print Speed
Up to 6 ips (152mm/s)

Max. Print Width
4.16" (105.7mm)

Max. Print Length
450" (11,430mm)

RAM
128 MB SDRAM

Flash
128 MB

Expanded Flash
microSD card reader; up to 512 GB

Optional Cutter
Guillotine cutter (full-cut or partial-cut)

Media Specifications

Internal Label Capacity
5" (127mm) OD

Max. Media Width
0.59" - 2.36" (15 - 60mm)

Media Type
Continuous, die-cut, black mark, fan-fold, notch (outside wound), linerless media (for linerless option)

Media Core Diameter
1" - 1.5" (25.4 - 38.1mm)

Construction
Clamshell with double-walled plastic

Programming Languages
TSPL-EZD



*Specifications are subject to change without notice
