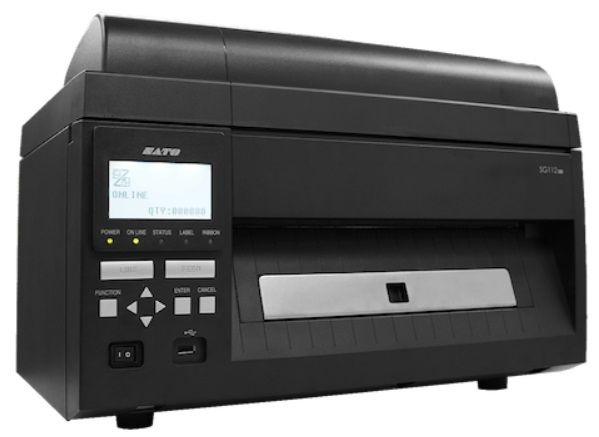

SATO SG112-ex

SATO SG112-ex

The SATO SG112-ex has wide width large format printing. Whether one single label or multiple smaller labels printed at the same time the SATO SG112-ex makes it possible for print widths up to 10.5-inches and print speeds of up to 6 ips without having to rotate the image. Precision printing isn’t compromised as the SATO SG112-ex is equipped with a 305 dpi thermal print head. Multiple standard interface options and multi-language LCD display provide ease of use among different installations and users.
Get a Quote >>

Availability: Call for availability
manufacturer warranty
Product Information

Overview

Demonstrating true SATO innovation, the SG112-ex is designed to save operator time and improve work efficiency in fast-paced production environments. The SG112-ex has a print width of up to 10.5 inches wide at a speed of up to six inches per second.

PRODUCT SPECIFICATIONS

Print Resolution
305 dpi (12 dots/mm)

Print Speed
3, 4, 5, 6 ips (75, 100, 125, 150 mm/sec)

Print Area
Max Width 10.5" (266.7 mm)
Max Length 16.5" (420 mm)

Media Size (with liner)
Width
Continuous / Tear Off / Tray / Cutter
5.15" (131mm) - 11.8" (300mm)

Length
Continuous
1.29” (33mm) - 16.65” (423mm)

Tear Off
1.69” (43mm) - 16.65” (423mm)

Tray
1.69” (43mm) - 4.72” (120mm)

Cutter
1.69” (43mm) - 16.65” (423mm)

PRINTING SPECIFICATIONS

Method
Thermal Transfer and Direct Thermal

Mode
Continuous, Tear-off, Cut & Print (cutter model)

MEDIA SPECIFICATIONS

Sensor Type
I-Mark Sensor (Reflective) / Label Gap Sensor
(Transmissive)

Media Type
Roll or fan-fold die cut labels

Media
Thickness (Label & Liner)
0.0031" - 0.0106" (0.08 - 0.27 mm)
*Use media 0.0047" (0.12 mm) or greater in thickness for
Auto Feed mode
*Use media 0.0083" (0.21 mm) or lesser in thickness for
Cutter option

Roll Diameter
Maximum 8” OD (200 mm) on 3” (76 mm) core

Wind
Face-in / Face-out

Ribbon
Length / Diameter
Maximum 984.25 ft. (300 m) / Maximum 2.76" OD (70.0 mm)

Width
5.7" - 10.7" (145 - 273 mm)

Core Diameter
1.01" ID (25.6 mm)

Wind Direction
Face-in

FONT SPECIFICATIONS

Internal Fonts
22 Bitmap Fonts, 8 Scalable Fonts, Multi-language display
and printing of Asian fonts

CONNECTIVITY

USB 2.0 (Type A & B), LAN, RS-232C, IEEE1284, EXT, SD
Card Slot, USB Type A

MEMORY & PROCESSING

CPU Type
32bit RISC-CPU 250MHz

On-Board Memory
Flash ROM: Standard Memory Size 40MB
User area 4.5 MB
SDRAM: Standard Memory Size 64MB

User Downloadable Fonts, Graphics or Format
Maximum 100 MB

USER FRIENDLY SUPPORT TOOLS

Large Status LED
POWER (Green/Orange), ONLINE (Green), STATUS
(Green/Red), LABEL (Red), RIBBON (Red).

Audible Alerts
Adjustable volume setting

Self Diagnosis
Head Open, Ribbon Open, Cutter-cover Open

Display Panel
3.3" LCD display with three color LED (green, orange, red)
and brightness adjustment

Operation Buttons
LINE, FEED, FUNCTION, ENTER, CANCEL Arrow buttons

Print Setting Tool
SATO-All-In-One-Tool

Multi-national Language Support
English, Chinese, and Japanese display language options

OPTIONS

RTC (Calendar) Kit, Catch Tray, Unwind Unit.

BARCODE SYMBOLOGIES

Barcodes
Linear
UPC-A, UPC-E, JAN/EAN, CODE39CODE93, CODE128,
GS1-128(UCC/EAN128), ISBT128, CODABAR(NW-7),
ITF, Industrial 2of5, Matrix 2of5, MSI, POSTNET,
BOOKLAND, GS1 DataBar Omnidirectional, GS1 DataBar
Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked
Omnidirectional, GS1 DataBar Limited, GS1 DataBar
Expanded, GS1 DataBar Expanded Stacked , Intelligent
Mail Barcode (IMb). *GS1 DataBar was formerly called
RSS.E

2D Symbologies
QR Code (including Micro QR) PDF417 (including
MicroPDF) MAXICode (Ver.3.0) GS1 DataMatrix (ECC200
Ver.2.0)

OPERATING CHARACTERISTICS

Electrical Requirements
AC100 V ~ 240 V ±10% (full range) / at 50/60 Hz.

Standards & Agency Approvals
FCC Part 15 Subpart B Class A/ICES-003 Class A,
CE(EN55032, EN55024), CCC(GB/T9254-2008, GB17625.1-
2012) BSMI(CNS13438), UL 60950-1/CSA C22.2 No.60950-
1, CE, Nemko-GS EN60950-1, CCC(GB4943.1-2011),
BSMI(CNS14336-1), BIS(IS 13252).

Environment
Operating
41 to 104°F (5 - 40°C), 30 - 80% RH
(without condensation)
Storage
23 to 140°F (-5 to 60°C), 30 - 90% RH
(without condensation)

PHYSICAL CHARACTERISTICS

Dimensions
18.70" W x 12.34" L x 12.57" H (475 mm x 313.4 mm x
319.2 mm) - 20.30" H (515.5 mm) with cover open.
6.46" (164 mm): Media exit area.
3.35" (85.1 mm): Tray - Cutter Model Only.

Weight
Standard Model (Media/Ribbon excluded):
Approx. 44.1 lbs. (20.0 Kg)
Cutter Model (Media/Ribbon excluded):
Approx. 51 lbs. (23.1 Kg)

MISCELLANEOUS

SNMP enabled, SBPL Command Error Mode,
Maintenance notifications, Error indicators, Data save
mode


*Specifications are subject to change without notice
