SATO PW4NX

SATO PW4NX

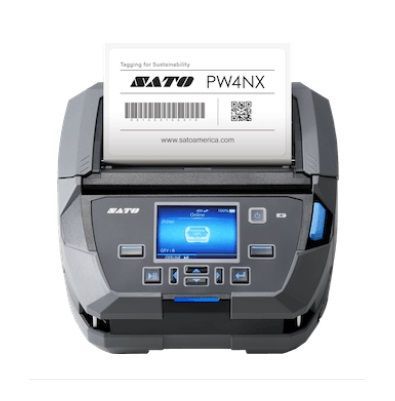

The SATO PW4NX mobile label printer meets the needs of a changing, fast-paced world, and exceeds expectations for what printers can do. Fast, durable, intelligent, and innovative; the PW4NX’s large color screen, programmability, and pre-installed emulations make it user-friendly and easy to integrate.
Get a Quote >>

Availability: Call for availability
 Product Information

Overview

The SATO PW4NX is a 4-inch label printer that prints as fast as a desktop printer with exceptional durability; universally designed with Application Enabled Printing (AEP), NFC communication, and iOS support. The printer provides flexibility and maximizes productivity, making the SATO PW4NX the strategic choice for mobile printing technology for tablets, mobile computers, and smartphone operations. The SATO PW4NX is engineered to withstand demanding environments such as high-impact drops, dust entry, and water contact from various angles. Its ease of use, with a 2.4-inch color display for intuitive operation and flexible power delivery with the DC-to-DC adapter, differentiates this printer from all others in that it allows the printer to draw power from forklifts and other electric vehicles. Inventory & raw material management, cross-docking, receiving and shipping goods inspections, item processing and quality checks are some of the applications supported with the SATO PW4NX mobile printer.

Specifications

PRINT SPECIFICATIONS
Method
Direct Thermal

Mode
Continuous, Tear-off, Cutter, Dispense, Linerless

Print Resolution
203 dpi (8 dots/mm)

Print Speed
2 – 6 ips (51 - 152 mm/sec)
Linerless & Dispenser: 2 to 4 ips (51 - 101 mm/sec)

Max. Print Area
Width: 4.09” (104 mm)
Length: 39.37” (1000 mm)

MEDIA SPECIFICATIONS

Sensor Type
Transmissive Sensor for Gap,
Reflective Sensor for I-mark

Media Type
Roll (Die-cut, Continuous, Linerless Labels)

Media Size (Without Liner)
Continuous
Width: 1.5 – 4.37” (38 - 111 mm)
With Liner: 1.61 – 4.49” (41 - 114 mm)
Length: 0.51 – 12” (13 - 305 mm)
With Liner: 0.63 –12.13” (16 - 308 mm)

Tear-Off
Width: 1.5 – 4.37” (38 - 111 mm)
With Liner: 1.61 – 4.49” (41 - 114 mm)
Length: 0.63 – 12" (16 - 305 mm)
With Liner: 0.75 –12.13" (19 - 308 mm)

Dispenser
Width: 1.5 – 4.37” (38 - 111 mm)
With Liner: 1.61 – 4.49” (41 - 114 mm)
Length: 0.63 – 10" (16 - 254 mm)
With Liner: 0.75 – 10.12" (19 - 257 mm)

Linerless
Width: 1.5 – 4.49” (38 - 114 mm)
Length: 0.63 – 10.12" (16 - 257 mm)
Receipt
Width: 1.06" – 2.28" (27 - 58 mm)

Media Thickness
0.0023" – 0.0075" (0.058 - 0.1905 mm)

Outer Roll Diameter
Maximum Outer Diameter: 2.63" (67 mm)

Inner Roll Diameter
0.75" (19 mm)

COMMUNICATION INTERFACES SPECIFICATIONS

Standard
USB 2.0 High Speed type B mini, Bluetooth
Ver.5.0 BLE, NFC 802.11a/b/g/n/r/ac Dual band
WLAN (2.4 GHz, 5 GHz)

MEMORY & PROCESSING
Printer Memory
8GB ROM, 1 GB RAM
Receive Buffer: 2.95MB

Dual CPUs with a 1GHz

USER FRIENDLY SUPPORT TOOLS

Large Status LED
Blue/Red/Green (Battery)

Audible Alerts
Activated When Printer Requires Attention

Self Diagnosis
Thermal Head Check, Paper End Detection,
Test Print, Cover Open Detection,
Auto Power Off

Display Panel
2.4-inch color display (80° viewing angle)

Remote Maintenance
SNMP Ver. 3, web interfaces, SATO Online
Services (SOS), All-In-One Tool (AIOT), SOTI
Connect

Emulation
SBPL®, SZPL, SCPL, SIPL

SATO All-In-One Tool (AIOT)
Link to supported printer(s) via auto discovery
or manual entry; easily send print jobs using
mobile devices; Configure control any SATO
printer regardless of its location in the world

FONT SPECIFICATIONS

Internal Fonts
Standard Bitmap
U, S, M, WB, WL, XU, XS, XM, XB, XL, OCR-A,
Height: 3.35" (85 mm)
OCR-B

Scalable Fonts
SATO CG Sleek, SATO CG Stream, 13 SATO
Fonts, Multi-National Language Support (47
Languages/Unicode), Single and Double Byte
Fonts (Korean, Chinese, Japanese)

Encoding
Major Latin and Pan-European Code Pages
(WGL4), GB18030 (Simplified), KSX1001
(Korean), BIG5 (Traditional), JIS, SHIFTJIS,
UTF-8 and UTF-16BE

BARCODE SYMBOLOGIES

Barcodes
Linear
Code 39, Code 93, Code 128, CODABAR
(NW7), EAN(JAN)8/13, GS1-Databar™, GS1-
128 (UCC/EAN128), Interleaved 2/5, Industrial
2/5, Matrix 2/5, MSI, Bookland, Postnet™,
UPC-A/E

2D Symbologies
PDF417, Micro PDF, Maxi Code, GS1 Data
Matrix, Aztec, QR Code, Micro QR Code and
Composite Symbologies

OPERATING & ENVIRONMENT CHARACTERISTICS

Electrical Requirements
AC100V~AC240V, 50/60 Hz (AC Adapter) ;
Output: DC19V +/- 5% 2.37A

Standards & Agency Approvals
CE Marking, IEC60950-1, EN60950-1, EN55022,
EN55032, EN55024, EN61000-3-2/3-3,
EN 301 489-1/-3/-17, EN 300 330-2/-1, RE,
MET/cMET, FCC15B/C/E, CCC, SRRC, IDA,
SIRIM, NTC, SDPPI, RCM

Environment
Operating
5 to 122°F (-15 to 50 ºC), 10-90 % RH
(Without Condensation)
Storage
-13 to 140°F (-25 to 60 ºC), 10-90 % RH
(Without Condensation)

Battery
14.4V (2550 mAh)

PHYSICAL CHARACTERISTICS

Dimensions
Width: 7.09" (180 mm)
Depth: 7.68” 04" (195 mm)
Height: 2.69" (68.2 mm)

Weight
 3.17 lbs. (1,440g) Excluding Paper, Including
battery

Durability
Withstands Multiple drops at 7ft (2.13 m).
Rated IP54

ACCESSORIES

Included
Lithium-ion Battery, Belt Clip

Optional
1-Bay / 4-Bay Charging Cradle, 1-CH Battery
Charger, Lithium-ion Battery, AC Adapter, DC
Adapter, Battery Eliminator with AC Adapter,
Cigarette Adapter, Hand Strap, Belt Clip,
Shoulder Strap, Carrying Case, Printer Stand,
Mounting Bracket, Cold Case and Linerless Kit.

WARRANTY
1 Year


*Specifications are subject to change without notice
