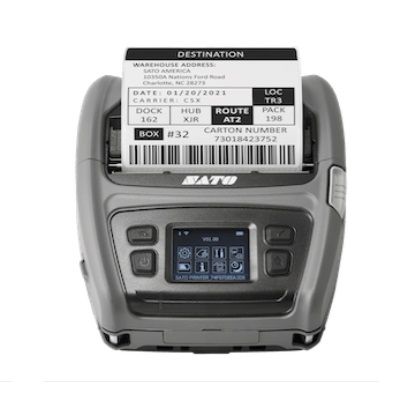

SATO PV4

SATO PV4

The SATO PV4 4" mobile label printer can change a business's work environment by printing labels when and where you need them. The SATO PV4's large label roll size, 2x industry battery capacity, and wireless connectivity boosts productivity and eliminates unnecessary worker movement.
Get a Quote >>

Availability: Call for availability
 Product Information

Overview

The next-generation SATO PV4 with a full-color LCD is designed with the extras users need to improve customer satisfaction and enhance productivity. The extra capacity battery along with a large media roll minimizes the downtime associated with battery and label roll changes. Lightweight over-molded plastics allow for a compact and durable design that makes the innovative SATO PV4 ideal for both indoor and outdoor use, enabling the user to quickly and effectively carry out tasks such as inventory management, picking, packaging, and shipping. Third-party emulation capabilities ensure the printer can be seamlessly integrated into existing workflows without hindering productivity and creating extra integration work. It also comes fully equipped with multiple wireless interfaces, enabling cost-effective, quick, and high-quality printing operations across the supply chain.

Specifications

PRODUCT SPECIFICATIONS

Print Resolution
203 dpi

Print Speed
5 ips

Print Area
Max Width 4.1" (104mm)
Max Length 15.7" (400mm)

Media Size
(with liner)
Width 4.4" (112mm)
Length 15.7" (400mm)

PRINTING SPECIFICATIONS

Method
Direct Thermal

Mode
Continuous, Tear-off, Dispenser

MEDIA SPECIFICATIONS

Sensor Type
Gap, Black Mark

Media Type
Roll (face-out), Fan-fold Label, Receipt

Media
Thickness (Label & Liner)
0.003" - 0.006" (0.07 - 0.15mm)

Outer Roll Diameter
Up to 2.60" (66mm)

Inner Roll Diameter
 0.75" (19mm), 0.5" (12mm)

Wind
Face-out

SATO Genuine Consumables
For maximum print quality and optimum use, SATO
recommends the use of SATO genuine consumables.

FONT SPECIFICATIONS

Internal Fonts
33 Bitmap and 2 Scalable Fonts, Multi-national Langauge
Support for Major Latin, Pan European and Asian
Languages, Single and Double Byte Fonts

CONNECTIVITY

Standard
USB 2.0 (Type C connector), Bluetooth® Ver. 5.0 LE

Optional WiFi
IEEE 802.11 a/b/g/n (Infrastructure, Ad-hoc, Soft AP)

MEMORY & PROCESSING

Printer Memory
256MB Flash, 128MB SDRAM

User Downloadable Fonts, Videos, Graphics or Format
Maximum 5MB

USER FRIENDLY SUPPORT TOOLS

Large Status LED
Red: Charging
Green: Fully Charged
Red Blinking: Error, Replace, or Reinstall Battery

Audible Alerts
Buzzer

Self Diagnosis
Cover Open, Label Presence

Display Panel
2" Color LCD (240 x 320 pixels)

Emulation
SLCS, BPL-Z™, BPL-C™

OPTIONS

Included
Lithium-ion Battery, Belt Clip

Optional
1 Bay Charger, 4 Bay Charger, Belt Clip, Lithium-ion
Battery, AC Adapter

BARCODE SYMBOLOGIES

Barcodes
Linear
Codebar, Code 11, Code 39, Code 93, Code 128, EAN-13,
EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI,
Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5,
UPC/EAN Extensions, UPC-A, UPC-E, IMB

2D Symbologies
Aztec, Codablock, Code 49, Composite Symbologies,
Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code,
TLC 39

OPERATING CHARACTERISTICS

Electrical Requirements
AC 100 V to 240 V (90 ~ 264 Vac)
Output voltage: 9 Vdc (9 ~ 9.55 Vdc)

Battery
7.2V Li-ion, 6,700 mAh 48 Wh

Standards & Agency Approvals
Please contact SATO regarding agency approvals in your
region.

Environment
Operating
5 - 122˚F (-15 - 50˚C) / 10 - 80% RH (without condensation)
Storage
-22 - 140˚F (-30 - 60˚C) / 10 - 90% RH (without
condensation)

PHYSICAL CHARACTERISTICS

Dimensions
7.3" L x 6.2" W x 3.2" H (186mm x 158mm x 82mm)

Weight
2.4 lbs (1094g) (including battery, excluding media)
Battery Weight of 0.5 lbs (235g)

Construction
Polycarbonate Body and Rubber Overmolding

Durability
Withstands Multiple 6' (1.8m) Drop Impacts
Water and Dust-proof IP54 (printer only)

MISCELLANEOUS

Functions - Useful Features
iOS, Android and Windows SDKs, Configuration Tools,
Built-in Dispenser, Virtual COM for USB, Label Design
Software, Mobile Printing App, Visual Battery Status




*Specifications are subject to change without notice
