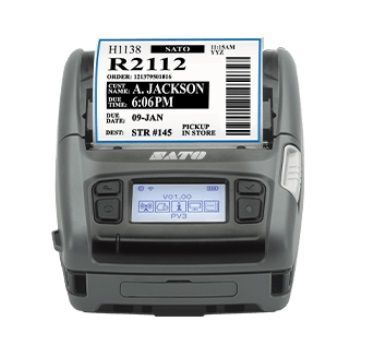

SATO PV3

SATO PV3

The compact and industrial SATO PV3 3-inch mobile printer is designed with durability and ruggedness and offers an economical solution for companies needing large roll capacity, great battery life, versatile connectivity and built-in dispenser functionality.
Get a Quote >>

Availability: Call for availability
 Product Information

Overview

Premium level performance with on-board competitive printer languages in a compact, ergonomic and light-weight mobile printer. Fast data processing and printing speeds up to 5 ips. Its polycarbonate clamshell design is durable and can withstand drops up to 7 feet and IP54 rated. Compatible with Android™, iOS™, Linux™, and Windows® operating systems.

Specifications

PRODUCT SPECIFICATIONS

Print Resolution
203 dpi

Print Speed
5 ips

Print Area
Max Width 2.83" (72mm)
Max Length 15.74" (400mm)

Media Size (with liner)
Width 3.15" (80mm)
Length 15.74" (400mm)

PRINTING SPECIFICATIONS

Method
Direct Thermal

Mode
Continuous, Tear-off, Dispenser

MEDIA SPECIFICATIONS

Sensor Type
Gap, Black Mark

Media Type
Roll (face-out), Fan-fold Label, Receipt

Media
Thickness (Label & Liner)
0.003" - 0.006" (0.07 - 0.15mm)

Outer Roll Diameter
Up to 2.60" (66mm)

Inner Roll Diameter
 0.75" (19mm), 0.5" (12mm)

Wind
Face-out

SATO Genuine Consumables
For maximum print quality and optimum use, SATO
recommends the use of SATO genuine consumables.

FONT SPECIFICATIONS

Internal Fonts
33 Bitmap and 2 Scalable Fonts, Multi-national Langauge
Support for Major Latin, Pan European and Asian
Languages, Single and Double Byte Fonts

CONNECTIVITY

Standard
USB 2.0 (Type B mini connector), Bluetooth® Ver. 4.1 LE

Optional Wireless LAN Kit (Coming Soon)
IEEE 802.11 a/b/g/n (Infrastructure, Ad-hoc, Soft AP)

MEMORY & PROCESSING

Printer Memory
256MB Flash, 128MB SDRAM

User Downloadable Fonts, Videos, Graphics or Format
Maximum 5MB

USER FRIENDLY SUPPORT TOOLS

Large Status LED
Red: Charging
Green: Fully Charged
Red Blinking: Error, Replace, or Reinstall Battery

Audible Alerts
Buzzer

Self Diagnosis
Cover Open, Label Presence

Display Panel
LCD (200 x 100 pixels)

Emulation
SLCS, BPL-Z™, BPL-C™

OPTIONS

Included
Lithium-ion Battery, Belt Clip

Optional
1 Bay Charger, 4 Bay Charger, Belt Clip, Lithium-ion
Battery, AC Adapter

BARCODE SYMBOLOGIES

Barcodes
Linear
Codebar, Code 11, Code 39, Code 93, Code 128, EAN-13,
EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI,
Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5,
UPC/EAN Extensions, UPC-A, UPC-E, IMB

2D Symbologies
Aztec, Codablock, Code 49, Composite Symbologies,
Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code,
TLC 39

OPERATING CHARACTERISTICS

Electrical Requirements
AC 100 V to 240 V (90 ~ 264 Vac)
Output voltage: 9 Vdc (9 ~ 9.55 Vdc)

Battery
7.4V Li-ion, 2,600 mAh

Standards & Agency Approvals
Please contact SATO regarding agency approvals in your
region.

Environment
Operating
5 - 122˚F (-15 - 50˚C) / 10 - 80% RH (without condensation)
Storage
-22 - 140˚F (-30 - 60˚C) / 10 - 90% RH (without
condensation)

PHYSICAL CHARACTERISTICS

Dimensions
6.26" L x 4.69" W x 3.11" H (159mm x 119mm x 79mm)

Weight
1.53 lbs (694g) (including battery, excluding media)
Battery Weight of 0.24 lbs (110g)

Construction
Polycarbonate Body and Rubber Overmolding

Durability
Withstands Multiple 6.9' (2.1m) Drop Impacts
Water and Dust-proof IP54 (printer only)

MISCELLANEOUS

Functions - Useful Features
iOS, Android and Windows SDKs, Configuration Tools,
Built-in Dispenser, Virtual COM for USB, Label Design
Software, Mobile Printing App, Visual Battery Status




*Specifications are subject to change without notice
