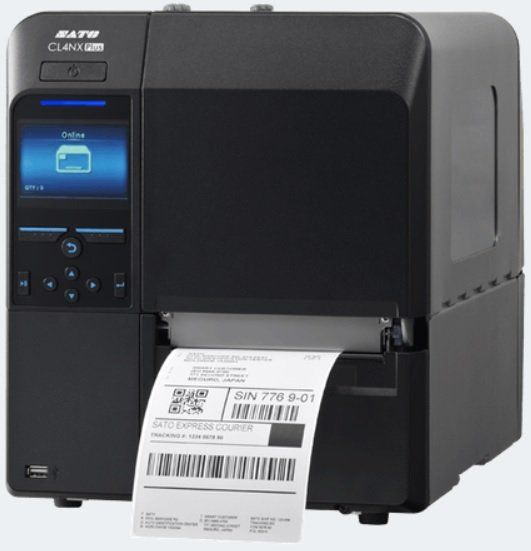

SATO CL4NX Plus

Standard features that are unequaled by its competition!

SATO's CL4NX Plus Printer sets a new and innovative industry standard for ease of use, intelligence, on-board industry emulations, connectivity, speed of processing data streams, user activity interface, and so much more.
Get a Quote >>

Model(s): CL4NX Plus 203dpi, CL4NX Plus 305dpi, CL4NX 609dpi

Availability: Call for availability
manufacturer warranty
SATO CL4NX Plus Models

Product Description

PRINT SPEED

14 ips (355 mm/sec)


PRINT METHOD

Direct Thermal/Thermal Transfer


MAXIMUM PRINT AREA

4.09" (104 mm) W x 98.43" (2500mm) L


MEMORY

CPU1: 2GB Flash, 256MB RAM

CPU2: 4MB Flash, 64 MB RAM

PRINTER EMULATIONS SBPL / SDPL / SEPL / SIPL / STCL / SZPL / XML, Direct PDF Printing, SATO AEP


INTERFACES

STANDARD: USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, Bluetooth® Ver. 3.0, NFC

OPTIONAL: Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11 a/b/g/n, Dual Band (2.4 GHz, 5 GHz)


REMOTE MANAGEMENT

SNMP Ver. 3, Web Interface, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect

Product Description

PRINT SPEED

14 ips (355 mm/sec)


PRINT METHOD

Direct Thermal/Thermal Transfer


MAXIMUM PRINT AREA

4.09" (104mm) W x 59.06" (1500mm) L


MEMORY

CPU1: 2GB Flash, 256MB RAM

CPU2: 4MB Flash, 64 MB RAM


PRINTER EMULATIONS

SBPL / SDPL / SEPL / SIPL / STCL / SZPL / XML, Direct PDF Printing, SATO AEP


INTERFACES

STANDARD: USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, Bluetooth® Ver. 3.0, NFC

OPTIONAL: Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11 a/b/g/n, Dual Band (2.4 GHz, 5 GHz)


REMOTE MANAGEMENT

SNMP Ver. 3, Web Interface, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect

Product Description

PRINT SPEED

6 ips (152 mm/sec)


PRINT METHOD

Direct Thermal/Thermal Transfer


MAXIMUM PRINT AREA

4.09" (104mm) W X 15.74" (400mm) L


MEMORY

CPU1: 2GB Flash, 256MB RAM

CPU2: 4MB Flash, 64 MB RAM


PRINTER EMULATIONS

SBPL / SDPL / SEPL / SIPL / STCL / SZPL / XML, Direct PDF Printing, SATO AEP


INTERFACES

STANDARD: USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, Bluetooth® Ver. 3.0, NFC

OPTIONAL: Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11 a/b/g/n, Dual Band (2.4 GHz, 5 GHz)


REMOTE MANAGEMENT

SNMP Ver. 3, Web Interface, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect

  • Full color interactive LCD with Intuitive Menu Navigation
  • On-board Help Videos
  • Tool-less Maintenance
  • 10-inch media supply (Face-in/Face-out wind) and 600m ribbon (CSI/CSO) supported
  • Multiple Interfaces - Auto Switching
  • Competitive Emulations On-board - Auto Switching

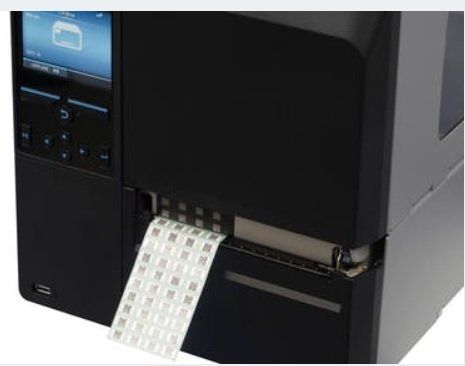

  • Micro Label Print Mode
  • Print speeds up to 14 ips in either 203 or 305 dpi
  • HF or UHF RFID support with SATO RF Analyze (SRA) **Coming Fall 2020
  • Smart Print Head and Pure Line Platen Roller
