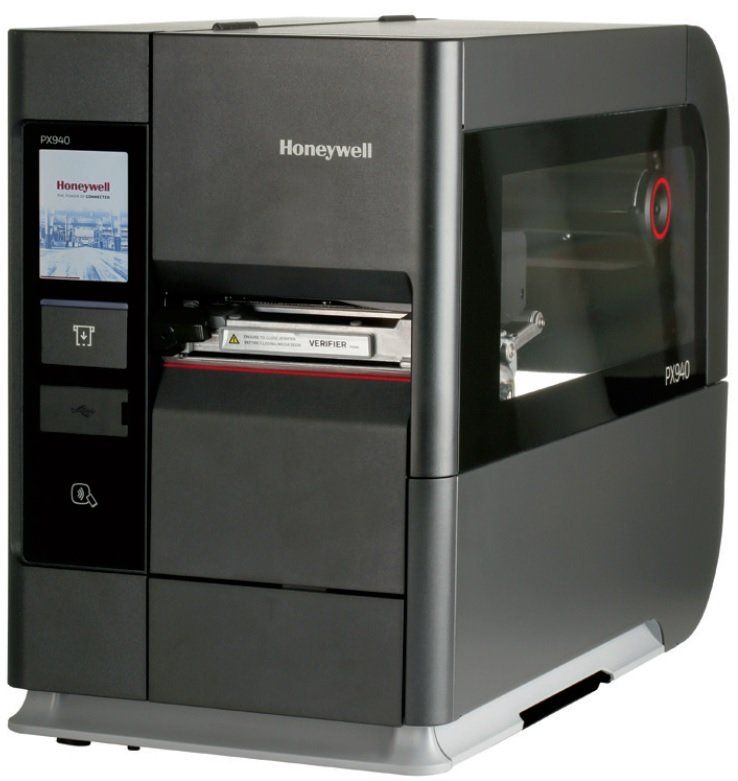

Honeywell PX940

The Honeywell PX940 series takes industrial printing to a new level of accuracy and simplicity by providing customers with error-free precision printing, increasing production efficiency and reducing operational costs.

Includes Integrated Label Verification

Get a Quote >>

Availability: Call for availability

Includes Full Manufacturer's Warranty

Product Information

Specifications

STANDARD

Print Method

Thermal Transfer and Direct Thermal

3.5 in color touch LCD

Foldable clear media door

Dual Label Stop Sensor for precision printing

Dual Core 1 GB processor (ARM® Cortex® A9 core)

256 MB Flash memory

1 GB DDR3 SDRAM

Multi-GB USB memory device (FAT16/FAT32)

Internal real-time clock

MECHANICAL

PX940/PX940 Verifier Version

L x H x W: 506 mm x 398.7 mm x 261 mm (19.92 in x 15.70 in x 10.28 in)

PX940

Weight: 23 kg (50.71 lbs)

PX940 Verifier Version

Weight: 23.5 kg (51.81 lbs)

PRINT SPECIFICATIONS

Print Resolution

At 203 dpi: 8 dots/mm

At 300 dpi: 11.8 dots/mm

Print Speed

At 203 dpi: 50–350 mm/s (2–14 ips)

At 300 dpi: 50–300 mm/s (2–12 ips)

At 600 dpi: 25–150 mm/s (1–6 ips)

Maximum Width

At 203 dpi: 108 mm (4.25 in)

At 300 dpi: 105.7 mm (4.16 in)

At 600 dpi: 105.6 mm (4.16 in)

Maximum Continuous Print Length

At 203 dpi: 4.8 m (15.75 ft)

At 300 dpi: 2.2 m (7.22 ft)

At 600 dpi: 0.55 m (1.81 ft)

BARCODE VERIFIER SPECIFICATION

(PX940 Verifier Version)

Scan Resolution

600 dpi

Maximum Scan Width

108 mm (4.25 in)

Light Source

660 nm

Maximum Verification Speed

At 203 dpi and 300 dpi: 200 mm/s (8 ips)

At 600 dpi: 150 mm/s (6 ips)

Barcode Orientation

All directions

Barcode Verification Modes

Linear (1D) barcode verification conforming to ISO/IEC 15146-2016; 2-Dimensional (2D) barcode verification conforming to ISO/IEC 15415-2011; Read/No Read Barcode verification

Minimum Linear (1D) Bar Width

10 mils (0.254 mm)

Minimum 2D Cell Size

15 mils (0.381 mm)

Supported 1D Symbologies

Code 39, HIBC 39, Code 128, ISBT 128, HIBC 128, EAN-128, GS1-128, EAN-8, EAN-13, UPC-A, UPC-E, Interleaved 2 of 5, ITF-14, SCC-14, RSS14E, GS1 Databar Expanded

Supported 2D Symbologies

Data Matrix, ISBT Data Matrix

Maximum Verification Length

304.8 mm (12 in)

Maximum Voiding Length

Batch Print: 152.4 mm (6 in)

On Demand Mode: 304.8 mm (12 in)

Maximum Number of Barcodes per Label

Minimum Media Opacity

80%

Maximum Operating Ambient Light

5000 lux

Verification Reports

Statistics and detailed reporting is available through printer web page, USB thumb drive, Verifier Integration Interface (VII), or FTP/SFTP

MEDIA SPECIFICATIONS

Media Type

Gap, black mark, tag, hole, notch, or continuous

Max./Min. Width (Label and Liner)

114/20 mm (4.5/0.79 in)

Minimum Label Length

Tear-Off Mode: 3.0 mm (0.12 in)

Self-Strip Mode: 12.7 mm (0.5 in)

Rewind Mode: 6.0 mm (0.24 in)

Thickness (Label and Liner)

3 mil to 10 mil

Configuration

Roll-fed (wound out only) or fanfold

Label Roll Maximum Diameter

212.7 mm (8.375 in)

Label Roll Core

76 mm (3 in) or 388 mm (1.5 in)

RIBBON SPECIFICATIONS

Ribbon Spindle

Both ribbon coated side in and out

Roll Max. Diameter

80 mm (3.15 in), approx. 450 m (1,476 ft)

Core ID

25 mm (1 in)

Max./Min. Width (Ribbon and Core)

110/51 mm (4.33/2.0 in)

Type

Wax, mid-range, resin

Genuine Honeywell Media

www.honeywellaidc.com/products/media

INTERFACES

Standard

USB 2.0 Host (x2)

USB 2.0 Device

Ethernet 10/100 Mbps

RS-232, up to 115.2 KB/s

Bluetooth LE (for Print Set MC only)

Static NFC tag (Bluetooth MAC address)

USER INTERFACE LANGUAGES

On Color Touch LCD and Web Interface

English, Italian, French, Spanish, Portuguese, German, Russian, Chinese Traditional and Simplified, Korean, Japanese, Thai

POWER SUPPLY

200 watt rated power supply with PFC

AC Voltage: 100V AC to 240V AC, 50 Hz to 60 Hz

OPERATING ENVIRONMENT

Operating Temperature

+5°C to +40°C (+41°F to +104°F)

Storage Temperature

PX940: -20°C to +70°C (-4°F to +158°F)

PX940 Verifier Version: -20°C to +60°C (-4°F to +140°F)

Humidity

20% to 85% non-condensing

ACCESSORIES

Verifier Calibration Card (applicable to PX940 Verifier Version only)

Wireless Board (IEEE 802.11 a/b/g/n/ac)

Parallel Board (IEEE 1284)

Applicator Interface Board

Industrial Interface Board

Peel Off module (factory configurable)

Rewinder module (factory configurable)

1.5 in non-collapsible inner core diameter on media supply and rewinder take-up (factory configurable)

SOFTWARE

Printer Command Languages

Fingerprint (FP)

Direct Protocol (DP)

Intermec Printer Language (IPL) support on 203 dpi and 300 dpi only

ZSim2 (ZPL-II)

DPL

XML enabled for SAP® AII and Oracle®

WMS

Applications/Drivers

InterDriver Windows® printer driver, CUPS driver for Linux, Honeywell Device Types for SAP, Honeywell label design and print package

Smart Printing Languages

Honeywell C# for Printers: Smart Printing Developer Resource Kit; write apps with .NET-compatible development environments; barcode verification disabled when running C#

Configuration and Device Management Support

Print Set 5 for printer configuration; sophisticated web interface for configuration, upgrades, and 1:1 management; Print Set MC (Android™ and Apple® iOS) for printer configuration and AR user guide via Bluetooth LE only

BARCODES/FONTS/GRAPHICS

Barcode Symbologies

All major 1D and 2D symbologies are supported

Standards Supported

UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label), OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label, Global Transport Label

Fonts

Monotype font engine; non-Latin fonts available through WTLE

Graphics

Supports PCX, PNG, GIF, and BMP file formats. Other formats supported with Label Generation Tools.

REGULATORY APPROVALS

RoHS Compliant, CE (EN55032 Class B*), FCC Class B*, Energy Star 2.0 Qualified

For more countries compliant, please contact your local sales office.

*Note: Implemented on printer serial number starting with 19301B087C

*Specifications are subject to change without notice
