Product Information
Overview

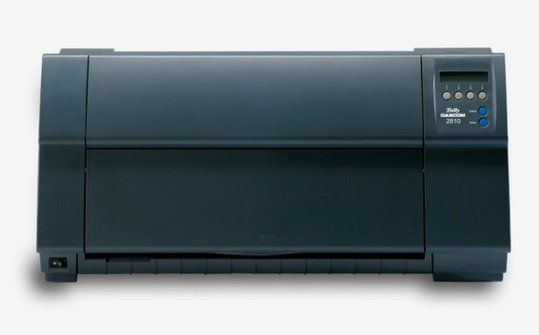

The Dascom 2810 printer is designed for fast, efficient performance under the most rigorous conditions in challenging environments. Built to perform, the Dascom 2810 gives users exceptional forms handling, the ability to print heavy workloads, and rugged durability that ensures quality operation in tough conditions.
An excellent value, the Dascom 2810 offers low operation costs and is weII-matched to Microsoft® Windows applications. It is also highly compatible with other host operation environments including legacy systems.
As intuitive as it is tough, the Dascom 2810 is also easy to use and its automated features limit the potential for human error during operation.
Specifications
- Print Speed
960 cps (Fastest Draft); 800 cps (Draft), 267 cps (NLQ) at 12 cpi
- Resolution
Up to 360 x 360 dpi (ESC/P Emulation only)
- Throughput
640 pages per hour (ECMA 132 @ 10cpi)
- Character Density
5, 6, 7.5, 8.6, 10, 12, 15, 17.1, 20 cpi
- Line Density
2, 3, 4, 6, 8, 12 lpi
- Printhead Life
750 million characters
- Standard Memory
256 Kb
- Standard Connectivity
USB 2.0 (Full Speed) and Ethernet 10/100 Base T with Ipv6 support. USB host
- Optional Connectivity
Parallel IEEE 1285 and RS-232 Serial combo interface, Ethernet Multi-protocol, Ethernet with SCS or IPDS, Coax with SCS or IPDS support
- Standard Emulation
IBM Proprinter XL24e, Epson LQ2550, EPSON LQ2170 (ESC P/2), MTPL, Genicom ANSI + Barcodes + LCP
- Fonts
Data Print Quality, Roman, Sans Serif, Courier, Prestige, Script, Orator, Gothic, Souvenir, OCR-A/B, 17 Barcodes and Large Character Printing
- Consumables
Ribbon: 20 million characters
- Administration
Backlit Panel, internal web page, System settings/firmware upload via USB host interface
- Standard Paper Handling
Push Tractor for continuous paper with straight paper path, Tear off and Park position, Dual friction for better paper handling
- Optional Paper Handling
Additional Push Tractor (front)
- Number of Copies
Push Tractor (Front) 1 original + 6 copies
- Paper Type
Continuous Forms, Multi-Part Forms (.025” thick max.)
- Paper Weight
60 - 120 g/m2
- Paper Size
Width: 3“ to 16.5“ (76 mm – 419 mm) , Length: 3“ to 22“ (76 mm – 560 mm)
- Physical Size
24.5“ x 17“ x 11“ (624 x 432 x 280 mm)
- Physical Weight
42 lbs (Approximately 19 kg)
- Acoustic
59 db(A)
- Power Voltage
120 V or 230 V (auto-switching)
- Power Consumption
75 Watt while Printing; 2 Watts power save
- Temperature
+ 50 to +95 F; 20% to 80% humidity (not condensing)
- Workload
Up to 50,000 pages per month
- Drivers
Windows 8/10 (32 and 64 bits) and Server 2012/2016; SAP
- Reliability
MTBF 20,000 hours
- Temperature
50 °F – 95 °F (+10 °C to +35 °C)
- Humidity
15% to 75% RH (not condensing)
