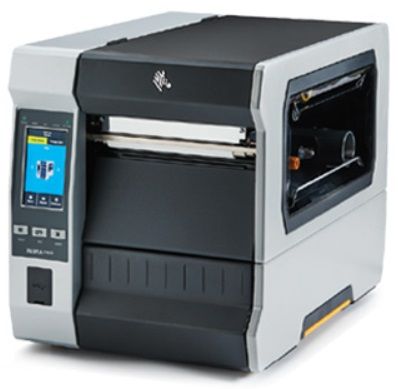

Zebra ZT620 RFID

The Zebra ZT620 RFID printer virtually eliminates operational downtime due to printer failure. The durable, all-metal designs hold up against extreme temperatures, dust, debris, moisture and worse. Guided instructions and feedback eliminate common errors and reduce manual adjustments for highly consistent printing. And high-quality print mechanisms and internal components deliver superior print quality and speed across the widest range of applications. A field-installable, full-width, guillotine-style cutter with catch tray is ideal for apparel tag applications

Get a Quote >>

Availability: Call for availability

Includes Full Manufacturer's Warranty

Product Information

More Standard Features

Reduce RFID Media Costs

Tags are spaced incredibly close together, with a distance (pitch) of 0.6"/16 mm or narrower on most RFID inlays—smaller than what other printer/encoders can accommodate. By spacing inlays closer, label converters use less material, which reduces your cost per label, requires fewer media roll changes and gives you faster printer/encoder throughput.

Printer Specifications

RFID

Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
Integrated RFID system is user-upgradeable in the field and available on both 4" and 6" models
Adaptive Encoding Technology automatically selects optimum encode settings
Supports industrystandard, multi-vendor, chip-based serialization
Supports block permalocking of user memory compatible with ATA Spec 2000
Allows users to track performance with RFID job-monitoring tools

Standard Features

Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
Side-loading supplies path for simplified media and ribbon loading
Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0
Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance
Simplified icon menu navigation system categorizes settings into logical groups of functions

Printer Specifications

Resolution

203 dpi/8 dots per mm

300 dpi/12 dots per mm (optional)

600 dpi/24 dots per mm (optional for ZT610 only)

Memory

1 GB RAM memory

2 GB on-board linear Flash memory

Maximum Print Width

ZT610: 4.09"/104 mm

ZT620: 6.6"/168 mm

Maximum Print Speed

ZT610: 14 ips/356 mm per second

ZT620: 12 ips/305 mm per second

Media Sensors

Dual media sensors: transmissive and reflective

Maximum Continuous Print Length

ZT610

• 203 dpi: 150"/3810 mm

• 300 dpi: 130"/3302 mm

• 600 dpi: 30"/762 mm

ZT620

• 203 dpi: 150"/3810 mm

• 300 dpi: 100"/2540 mm

Media Characteristics

Media Width

ZT610

• 1.00"/25.4 mm to 4.5"/114 mm tear/cutter

• 1.00"/25.4 mm to 4.25"/108 mm peel/rewind

ZT620

• 2.00"/51 mm to 7.0"/178 mm tear/cutter

• 2.00"/51 mm to 6.75"/171 mm peel/rewind

Maximum Media Roll Size

8.0"/203 mm O.D. on a 3"/76 mm I.D. core

Thickness

0.0023"/0.058 mm to 0.010"/0.25 mm

Media Types

Continuous, die-cut, notch, black-mark

Ribbon Characteristics (Thermal-transfer option only)

Standard Length

1476'/450 m

Width

ZT610: 2.00"/51 mm to 4.33"/110 mm

ZT620: 2.00"/51 mm to 6.85"/174 mm

Core

1.0"/25.4 mm I.D.

Operating Characteristics

Environmental

Operating Temperature:

• Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC

• Direct thermal = 32ºF to 104ºF/0ºC to 40ºC

Operating Humidity: 20% to 85% non-condensing

Storage/Transportation Temperature: -22F to 140F/ -30C to 60C

Storage Humidity: 20% to 85% non-condensing

Electrical

Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts

ENERGY STAR qualified

Agency Approvals

IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3

cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro

Physical Characteristics

ZT610 closed

Length

19.88"/505 mm

Width

10.56"/268.2 mm

Height

15.58"/395.68 mm

Weight

50 lbs/22.7 kg

ZT620 closed

Length

19.88"/505 mm

Width

13.44"/341.45 mm

Height

15.58"/395.68 mm

Weight

57.4 lbs/26 kg

Software Tools

Link-OS Solutions

Document Design – Quickly design a customized print solution using your business data and Zebra’s intuitive plug-and-print design tools.

Device Integration – Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.

Device Management – Manage your print operations locally and globally with Zebra’s suite of device management tools.

Developer Tools – Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.

Web View

Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.

Alert

Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired or wireless device to minimize downtime.

Firmware

ZBI 2.0™ – Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals and much more.

ZPL and ZPL II® – Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all Zebra printers.

XML-enabled Printing – allows XML communications for barcode label printing.

Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code

2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts

Asian and other international scalable and smooth bitmapped fonts

Unicode™: For multi-language printing

Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats

IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control

Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0

32 MB user available DRAM

512 MB user available on-board Flash

Options and Accessories

Connectivity

Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

Media Handling

• Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner

• Cutter: Front-mount guillotine cutter and catch tray

• 1" I.D. Core media supply hanger

• Ink-side in ribbon supply spindle

Display

• Brightly lit, 4.3-inch full-color touch display with clear navigation and immediate status visibility and support

Keyboard Display Unit

• ZKDU™ keyboard display units for stand-alone printing applications

*Specifications are subject to change without notice

Zebra Link-OS

Link-OS is the one-of-a-kind enterprise printer operating system found in Zebra’s latest line of printers. Featuring advanced connectivity capabilities, extensive device management and advanced privacy controls, no other printers deliver this level of intelligence and innovation. Printers running Link-OS are supported by a suite of powerful Applications, Utilities and Developer Tools, making it simple to create robust, adaptable and intelligent print solutions.
