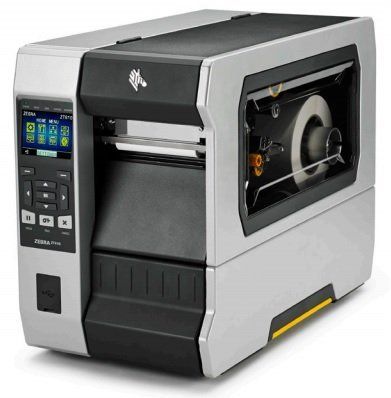

Zebra ZT610

Advancing the legacy of their industry-leading Xi Series predecessors, the Zebra ZT610 combines rugged durability and exceptional performance on a user-friendly, future-ready platform. This next-generation workhorse is designed to help you navigate the rapidly evolving business technology landscape.
Get a Quote >>
Availability: In Stock

Need repair? Get FAST Onsite Repair for the Zebra ZT610 click here.

Affordable coverage plans. Keep your Zebra ZT610 running click here.

Looking for Zebra refurbished printer? click here.
Product Information

More Standard Features


    Print Methods: Thermal transfer and direct thermal printing
    Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
    Side-loading supplies path for simplified media and ribbon loading
    Thin film printhead with E™ Element Energy™ for superior print quality
    Communications: USB 2.0,high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0
    Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance
    Simplified icon menu navigation system categorizes settings into logical groups of functions

Printer Specifications

Resolution: 203 dpi/ 8 dots per mm
300 dpi/ 12 dots per mm (optional)
600 dpi/ 24 dots per mm (optional for ZT610 only)
Memory: 1 GB RAM memory
2 GB on-board linear Flash memory
Maximum Print Width: ZT610: 4.09″/104 mm
ZT620: 6.6″/168 mm
Maximum Print Speed: ZT610: 14 ips/356 mm per sec
ZT620: 12 ips/305 mm per sec
Media Sensors: Dual media sensors (transmissive and reflective)

Maximum Continuous Print Length:

    ZT610

    203 dpi: 150″/3810 mm
    300 dpi: 130″/3302 mm
    600 dpi: 30″/762 mm

    ZT620

    203 dpi: 150″/3810 mm
    300 dpi: 100″/2540 mm


Media Characteristics


    Media Width
        ZT610
            1.00″/25.4 mm to 4.5″/114 mm tear/cutter
            1.00″/25.4 mm to 4.25″/108 mm peel/rewind

        ZT620
            2.00″/51 mm to 7.0″/178 mm tear/cutter
            2.00″/51 mm to 6.75″/171 mm peel/rewind

Maximum Media Roll Size: 8″/203 mm O.D. on a 3″/76mm I.D. core
Thickness: 0.0023″/.058 mm to 0.010″/0.25 mm
Media Types: Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length: 1476’/450mm
Width: ZT610: 2.00″/51 mm to 4.33″/110 mm
ZT620: 2.00″/51 mm to 6.85″/174 mm
Core: 1.0″/25.4 mm I.D.

Operating Characteristics

    Environmental:

    Operating Temperature:
        Thermal transfer= 40°F to 104°F/5°C to 40°C
        Direct thermal= 32°F to 104°F/0°C to 40°C
    Operating Humidity: 20% to 85% non-condensing
    Storage/Transportation Temperature: -22°F to 140°F/-30°C to 60°C
    Storage Humidity: 20% to 85% non-condensing

Electrical

    Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 watts
    ENERGY STAR qualified

Agency Approvals

    IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
    cTUVus CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC,CU,BSMI,KCC,SABS,IN-Metro

Physical Characteristics

Length: ZT610: 19.88″/505 mm ZT620: 19.88″/505 mm
Width: ZT610: 10.56″/268.2 mm ZT620: 13.44″/341.45 mm
Height: ZT610: 15.58″/395.68 mm ZT620: 15.58″/395.68 mm
Weight: ZT610: 50 lbs/22.7 kg ZT620: 57.4 lbs/26 kg

Software Tools

Link-OS Solutions

    Document Design- Quickly design a customized print solution using your business data and Zebra’s intuitive plug-and-print design tools.
    Device Integration- Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.
    Device Management- Manage your print operations locally and globally with Zebra’s suite of device management tools.
    Developer Tools- Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.

Web View

    Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.

Alert

    Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired or wireless device to minimize downtime.

Firmware

ZBI 2.0™- Optional powerful programming language that lets printers rn stand-alone applications, connect to peripherals and much more.
ZPL and ZPL II®- Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all zebra printers.
XML-enabled Printing- allows XML communications for barcode label printing.

Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsetsA/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

16 resident expendable ZPL II bitmap and two resident scalable ZPL fonts
Asian and other international scalable and smooth bitmapped fonts
Unicode™: For multi-language printing
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
32 MB user available DRAM
512 MB user available on-board Flash

Options and Accessories

Connectivity

    Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

Media Handling

    Rewind: Internally rewinds a full roll of printed labels on a 3″ core, or peels and rewinds liner
    Cutter: Front-mount guillotine cutter and catch tray
    1″ I.D. Core media supply hanger
    Ink-side in ribbon supply spindle

RFID

    Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
    Integrated RFID system is user-upgradable in the field and available on both 4″ and 6″ models
    Adaptive Encoding Technology automatically selects optimum encode settings

    Keyboard Display Unit
        ZKDU™ keyboard display units for stand-alone printing applications


*Specifications are subject to change without notice
