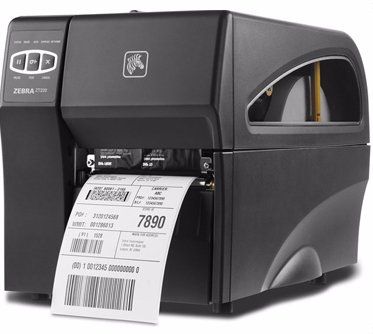

Zebra ZT220 Certified Refurbished

Zebra ZT220 Refurbished

Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT220 is the right choice for a variety of labeling applications. The Zebra ZT220 is an innovative printer providing many user benefits.
ORDER TODAY
Availability: Call for pricing and availability

All MIDCOM Certified refurbished equipment includes a 90 day warranty. Supplies are limited, but updated regularly.

**INCLUDES NEW PRINTHEAD**
*Base model.
certified refurbished
Our refurbishment process

The following parts are carefully inspected and/or tested on every thermal printer and where we believe a part is defective or worn, we replace that part as needed: ribbon feed spindle, ribbon take up spindle, platen, rollers, bearings, drive motor, belts, logic board, ribbon sensor, media sensor, control panel, display panel, power supplies, housing components are cleaned/or painted & replaced as necessary, and brand new print head added. Each unit undergoes stringent testing and quality control procedures before being shipped. Our printers ship with a 90 day limited return to MIDCOM service center warranty.
overnight shipping
Product Information

Overview

The ZT220 offers a streamlined design and smaller footprint that takes up less physical space than the Stripe and S4M models. The Zebra ZT220 requires minimal operator training and benefit from tool-less standard component maintenance and a durable design to minimise service. Your IT staff will appreciate the backwards compatibility the Zebra ZT220 offers, since it allows for new printers to be up and running with minimal downtime.

Product Description
  • 4” Direct Thermal or Thermal Transfer
  • Industrial Printer
  • New PrintHead
  • 90 Day Warranty

Standard Features

Print methods: direct-thermal or thermal-transfer (optional)
Construction: metal frame with choice of metal (ZT230) or plastic (ZT220) media cover
Bi-fold media door with large clear window
Side-loading supplies path for simplified media and ribbon loading
Element Energy Equalizer™ (E3™) for superior print quality
Bi-colour LEDs for quick printer status
Icon-based LCD multilingual graphical user interface and full function keypad (ZT230)
Simple keypad (ZT220)
USB 2.0 and RS-232 serial ports
Energy Star-compliant

Printer Characteristics

Resolution
• 8 dots per mm/203dpi
• 12 dots per mm/300dpi (optional)
Memory
• Standard: 128MB flash (58MB user-available), 128MB DRAM Print width
• 104mm/4.09″
Print speed
• 152mm/6″ per second
Media sensors
• Transmissive and reflective sensors
Media characteristics
• Maximum label and liner width: 114mm/4.5″
• Maximum non-continuous label length: 991mm/39″
Media width
• 19.4mm/0.75″ to 114mm/4.50″
Print length
• 203dpi: 3,988mm/157″
• 300dpi: 1,854mm/73″
Maximum media roll size
• 203mm/8.0″ O.D on a 76mm/3.0″ I.D. core
• 152mm/6.0″ O.D. on a 25mm/1.0″ I.D. core
Media thickness
• 0.076mm/0.003″ to 0.25mm/0.010″
Media types
• Continuous, die-cut, notch, black-mark

Ribbon Characteristics

(Thermal-transfer option only)
Outside diameter
• 81.3mm/3.2″ on a 25mm/1.0″ I.D. core (ZT230)
Standard length
• 300m/984′ (ZT220) or 450m/1,476′ (ZT230)
Ratio
• 2:1 media-roll-to-ribbon ratio for ZT220
• 3:1 media-roll-to-ribbon ratio for ZT230
Width
• 40mm/1.57″ to 110mm/4.33″
Ribbon setup
• Ribbon wound ink-side out, core to core

Operating Characteristics

Environmental
• Operating temperature: 5ºC to 40ºC (thermaltransfer) and 0ºC to 40ºC (direct-thermal)
• Storage temperature: -40ºC to 60ºC
• Operating humidity: 20% to 85% non-condensing
• Storage humidity: 5% to 85% non-condensing
Electrical
• Universal auto-ranging (PFC-compliant) power supply 90–265VAC; 48–62Hz
• Energy Star-compliant
Agency approvals
• IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
• Markings: UL, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, IRAM, CCC, GOST-R

Physical Characteristics (closed)

• Width: 239mm/9.4″
• Height: 280mm/11″
• Depth: 432mm/17″
• Weight: 7.8kg/17lb
