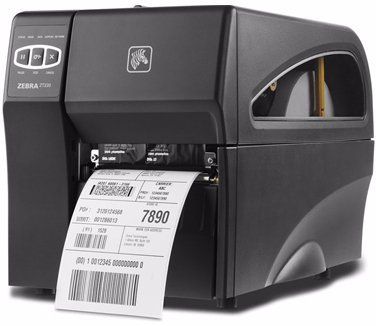

Zebra ZT220

Zebra incorporated extensive customer feedback, as well as the legacy of our industry leading Stripe and S4M printers, to create the new Zebra ZT200 Series family of printers with elegant space saving design, effortless setup, intuitive user operation, and ease of service and maintenance.

Get a Quote >>

Availability: Call for availability

Includes Full Manufacturer's Warranty

Product Information

Overview

Specifications

Resolution: 203 dpi (8 dots/mm)

300 dpi (12 dots/mm)

Memory: 128MB Flash, 128MB RAM

Print width: 4.09″/104 mm

Print length: 203 dpi: 157″/3,988 mm and 300dpi: 73″/1854 mm (optional)

Print speed: 203 dpi: 6″ (152 mm)/sec

300 dpi: 6″ (152 mm)/sec

Media sensors: Reflective, Transmissive

More Standard Features

Element Energy Equalizer™ (E3®) for superior print quality
USB 2.0 and RS-232 serial ports
Dual media sensors – transmissive and reflective sensing technology, selectable through software or front panel
Media supply hanger designed for 1″ (25mm) through 3″ (76mm) core diameters
Side loading metal print mechanism with head open lock
Link-OS™ capable

Printer Specifications

Resolution: 203 dpi (8 dots/mm) 300 dpi (12 dots/mm) Memory: 128MB Flash, 128MB RAM Print width: 4.09″/104 mm Print length: 203 dpi: 157″/3,988 mm and 300dpi: 73″/1854 mm (optional) Print speed: 203 dpi: 6″ (152 mm)/sec 300 dpi: 6″ (152 mm)/sec Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 4.50″/114 mm Minimum label and liner width: 0.75″ (19.4 mm) Maximum non-continuous label length: 39″/991 mm

Maximum Media Roll Size:

8.0″ (203 mm) O.D. on a 3″ (76 mm) I.D. core
6.0″ (152 mm) O.D. on a 1″ (25 mm) I.D. core

Media thickness: 0.003″/0.076 mm to 0.010″/0.25 mm Media types: continuous, die-cut, notch, black mark

Media Characteristics

Outside diameter: 300m = 2.7″/68.6 mm Standard length: 984′/300 m Ribbon width: 1.57″/40 mm to 4.33″/110 mm Ribbon setup: Ribbon wound ink-side out ID Core: 1.0″ (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 104° F (40° C) Thermal transfer DT: Operating temperature: 32° F (0° C) to 104° F (40° C) Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C) Operating humidity: 20% to 85% non-condensing Storage humidity: 5% to 85% non-condensing Energy Star certified universal auto-ranging (PFC-compliant) power supply 100-240VAC; 47-63 HZ. Not 90–265VAC; 48–62Hz Agency approvals

IEC 60950
EN 55022 Class B
EN55024
EN 61000-3-2
EN 61000-3-3

Physical Characteristics

Width: 9.5″/242 mm Height: 10.9″ (277 mm) Depth: 17″ (432 mm) Weight: 20 lbs (9.1 kg) Shipping weight: 25 lbs (11.4 kg) Related Products

Options

Factory Installed Printer Options

Thermal Transfer Core-to-Core Ribbon Handling System
Print head 300 dpi (12 dots/mm)
A front mount, passive peel option, w/ no take-up spindle
A front mount guillotine cutter
Liner Take-Up for ZT230 only, rewinds entire 8″ roll of liner (includes peel option)

Field Installed Printer Options

Additional scalable and smooth bitmapped fonts available
Print head 300 dpi (12 dots/mm)
A front mount, passive peeler
A front mount guillotine cutter
Internal parallel port option
ZebraNet 10/100 Print Server – supports 10/100 Ethernet networks internally integrated option that enables the use of ZebraLink Webview and Alert features.
ZebraNet n Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option.
Real Time Clock (RTC) –date/time for standalone applications
Keyboard Display Unit (KDU) option – Enter variable data and retrieve stored forms for standalone applications (requires null modem adapter with DB9 serial cable).

Communication and Interface Capabilities

ZebraNet® 10/100 Print Server – supports 10/100 Ethernet networks internally integrated option that enables the use of ZebraLink Webview and Alert features.
ZebraNet® n Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option.

Programming Languages

Core programming languages: XML, ZPL I/ZPL II

Bar Codes/Symbologies

Bar code modulus “X” dimension:

- Picket fence (non-rotated) orientation:

203 dpi = 4.9 mil to 49 mil

300 dpi = 3.3 mil to 33 mil

- Ladder (rotated) orientation:

203 dpi = 4.9 mil to 49 mil

300 dpi = 3.9 mil to 39 mil

Bar code ratios – 2:1, 7:3, 5:2, & 3:1

Linear bar codes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code

2-dimensional bar codes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

Fonts A, B, C, D, E, F, G, H, and GS are expandable up to 10 times, height and width independently. However, fonts E and H (OCR-A and OCR-B) are not considered ―in-spec” when expanded.
The scalable smooth font 0 (CG Triumvirate™ Bold Condensed) is expandable on a dot-by-dot basis, height and width independent, while maintaining smooth edges. Maximum character size depends on available memory.
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G, and 0 through software control.

MFG Part #(s): ZT22042-D01000FZ, ZT22042-D01200FZ, ZT22042-D11100FZ, ZT22042-D21100FZ, ZT22042-T01000FZ, ZT22042-T01200FZ, ZT22042-T08200FZ, ZT22042-T0E000FZ

*Specifications are subject to change without notice
