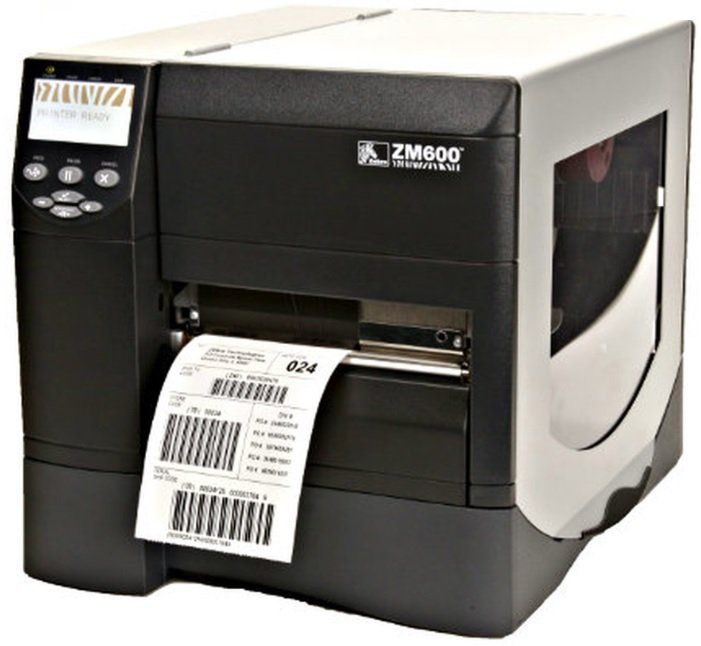

Used Zebra ZM600

Zebra’s Z Series industrial printer is upgradable with RFID for smart label encoding. Make warehouse or inventory management more efficient with Zebra Z Series printers. Zebra Z Series allows for high-speed, high-volume printing. The XML printing option allows for direct connection to ERP applications.
Get a Quote >>
Starting as low as: Call for special pricing

Availability: In Stock

Need repair? Get FAST Onsite Repair for the Zebra ZM600 click here.

Affordable coverage plans. Keep your Zebra ZM600 running click here.

Looking for the new Zebra ZT420? click here.
MIDCOM Certified
Product Information

Overview

Zebra’s Z Series industrial printer is upgradable with RFID for smart label encoding. Make warehouse or inventory management more efficient with Zebra Z Series printers. Zebra Z Series allows for high-speed, high-volume printing. The XML printing option allows for direct connection to ERP applications.

Specifications

16 MB DRAM, 8MB Flash
203dpi (8 dots/mm) printhead
RS-232C Serial Interface
High Speed, IEEE 1284, Bi-Directional Parallel Interface
USB 2.0
Transmissive and reflective media sensors
Multi-lingual backlit 240×128 pixel graphic display
Color-coded operator cues
RFID Ready

More Standard Features

  • Thermal transfer and direct thermal operating modes (can only use one mode at a time)
  • Die-cast aluminum base, frame, and printhead mechanism
  • Metal media cover with large clear window
  • 16 MB DRAM, 8MB Flash
  • 203dpi (8 dots/mm) printhead
  • RS-232C Serial Interface
  • High Speed, IEEE 1284, Bi-Directional Parallel Interface
  • USB 2.0
  • Transmissive and reflective media sensors
  • Multi-lingual backlit 240×128 pixel graphic display
  • Color-coded operator cues
  • RFID Ready
  • 7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
  • 32-bit processor
  • Auto-calibration
  • Auto detectable (90V – 265V) power supply
  • Element Energy Equalizer™ (E3®) (for print head energy control)
  • Real Time Clock
  • Unicode™ – Compliant
  • Quick change printhead and platen
  • Charcoal gray form design (for improved smudge resistance)
  • ZPL® or ZPLII® (Zebra Programming Language®)

Printer Specifications

Resolution: 203 dpi (8 dots/mm) 300 dpi (12 dots/mm) Memory
  • 16 MB DRAM
  • 8 MB Flash
  • 64 MB Factory-Installed On-Board Optional Flash (optional)
Print width: 6.6″ (168 mm) Print length
  • Length with 203 dpi: 102″ (2,591 mm)
  • Length with 300 dpi (optional): 45″ (1,143 mm)
Print speed: 203 dpi 10″ (254 mm)/sec 300 dpi 8″ (203 mm)/sec Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width
  • 7″ (178 mm) – tear & cutter
  • 6.75″ (171 mm) – peel & rewind
Minimum label and liner width: 2″ (51 mm) – tear & cutter, peel & rewind Maximum label and liner length: 39″ (991 mm) Maximum roll diameter: 8″ (203 mm) Core diameter: 3″ (76 mm) Media thickness: .0023″ (.058 mm) to .010″ (0.25 mm) Media types: black mark, continuous, die-cut, fanfold, notch, perforated, tag stock

Ribbon Characteristics

Outside diameter: 3.2″ (81.3 mm) Standard length: 1476′ (450 m) Ratio: 3:1 media roll to ribbon ratio Ribbon width: 2″ (51 mm) to 6.85″ (174 mm) Ribbon setup: Ribbon wound ink side out ID Core: 1.0″ (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating Temperature: 40° F (5° C) to 104° F (40° C) Thermal transfer DT: Operating temperature: 32° F (0° C) to 104° F (40° C) Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C) Operating humidity: 20-85% non-condensing Storage humidity: 5/85% non-condensing Electrical: Universal auto-detectable (PFC-compliant) power supply 90-265 VAC Agency approvals
  • IEC 60950-1 EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3

Physical Characteristics

Width: 13.4″ (341 mm) Height: 13.3″ (338 mm) Depth: 18.7″ (475 mm) Weight: 34.7 lbs (16 kg) Shipping weight: 54 lbs (24.5 kg)

Related Products

Options
  • 300 dpi (12 dots/mm) printhead
  • 64 MB Factory-Installed, On-Board Flash Memory (58 MB user available)
  • Cutter with catch tray
  • Value peel (front mount, passive peel option with no liner take-up)
  • Rewind, internally rewinds full label roll on three-inch core (comes with taller, non-standard printer base)
  • RFID Field Upgrade Kit
  • ZebraDesigner
  • ZebraDesigner Pro
  • ZebraDesigner for XML
  • ZebraNet Bridge Enterprise
  • Printhead conversion kits
  • ZebraCare Extended Warranty
  • European and Asian font sets
  • APL-I/APL-D firmware (contact Zebra Development Services for additional details)
  • ZebraNet Wireless Plus Print Server
  • ZebraNet b/g Print Server
Communication and Interface Capabilities
  • USB 2.0
  • RS-232C serial port
  • RS 232 to RS-422/485 serial port adaptor
  • RS232 DB9 to DB25 adaptor
  • High speed, IEEE 1284, bi-directional parallel interface
  • ZebraNet 10/100 Print Server
  • ZebraNet Wireless Plus Print Server
  • ZebraNet b/g Print Server

Programming Languages

Core programming languages: XML, ZPL II, ZPL, EPL

Bar Codes/Symbologies

Linear Codabar Code 11 Code 128 with subsets A/B/C and UCC case codes Code 39 Code 93 EAN-13 EAN-8 Industrial 2-of-5 Interleaved 2-of-5 Logmars MSI Planet Code Plessey Postnet RSS (reduced space symbology) Standard 2-of-5 UPC and EAN 2 or 5 digit extensions UPC-A UPC-E 2-dimensional Aztec Codablock Code 49 Data Matrix MaxiCode QR Code PDF417 MicroPDF417 RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
  • Standard fonts: 7 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
  • Sets: IBM Code Page 850 International character set
  • Optional European and Asian font sets
  • Supports user-defined fonts and graphics, including custom logos
  • ZPL II drawing commands, including boxes and lines
*Specifications are subject to change without notice
