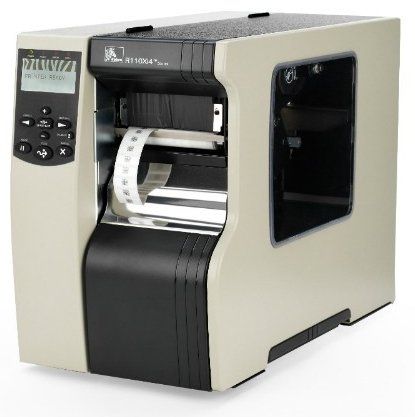

Zebra R110Xi4

Zebra R110Xi4 RFID

With Zebra’s R110Xi4 RFID printer/encoder—optimized for high volume operations—you can print and encode a variety of UHF radio frequency identification smart labels for a multitude of applications.
Get a Quote >>

Availability: Call for availability

zebra trade-in program
Product Information

Overview

Zebra’s exclusive variable inlay detection and configuration feature automatically detects the inlay position within the tag, so you can choose media from a variety of sources with no concern for calibrating inlay location.

Specifications

Resolution:
• 203 dpi/8 dots per mm
• 300 dpi/12 dots per mm
• 600 dpi/23.5 dots per mm
Memory: 8 MB Flash; 16 MB RAM
Print Width: 4.0”/102 mm
Print Speed
• 14”/356 mm per second (203 dpi)
• 12”/305 mm per second (300 dpi)
• 6”/152 mm per second (600 dpi)

More Standard Features

• Fully integrated ThingMagic® UHF EPC Gen 2 V1.2/ ISO 18000-6C RFID Reader/Encoder
• Prints and encodes EPC Gen 2 tags with a pitch of 0.6”/16 mm
• Adaptive Encoding Technology automatically selects optimum encode settings
• Auto-tag calibration for label lengths of 2” or greater
• Variable inlay placement supports a range of inlay positions for maximum media flexibility
• RFID counters keep track of the good and bad labels
• RFID processes optimized for fastest label throughput
• RFID ZPL® commands allow ease of RFID setup with maximum flexibility
• Variable RFID power settings for both read and write allow maximum flexibility for printing small labels

Physical Specifications

• Width: 10.31”/261.9 mm
• Height: 15.5”/393.7 mm
• Depth: 20.38”/517.5 mm
• Weight: 50 lbs/22.7 kg

Media Characteristics

Maximum Media Roll Size: 8”/203 mm OD on a 3”/76 mm ID core
Media Thickness: 0.003”/0.076 mm to 0.012”/0.305 mm
Media Types: Continuous, die-cut, black mark, notch

Ribbon Characteristics

• Outside diameter: 3.2”/81.3 mm
• Standard length: 1476’/450 m or 984’/300 m
• Ratio: 2/3:1 media to roll to ribbon
• Ribbon setup: Coated side out
• Core inner diameter (ID): 1”/25.4 mm

Operating Characteristics

Environment
• Operating Temperature:
  40° F/5° C to 105° F/40° C (Thermal Transfer)
  32° F/0° C to 105° F/40° C (Direct Thermal)
• Storage/Transport Environ.: -40° F/-40° C to
  140° F/60° C
• Operating Humidity: 20-85% non-condensing
• Storage Humidity: 5-85% non-condensing

Electrical: 90-264VAC; 48-62Hz

Programming Languages

Core programming languages: ZPL II, ZPL, XML

Bar Codes/Symbologies

• Barcode ratios: 2:1, 7:3, 5:2, and 3:1
• Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-
  8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars,
  MSI, Codabar and Planet Code
• 2-Dimensional: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

*Specifications are subject to change without notice
