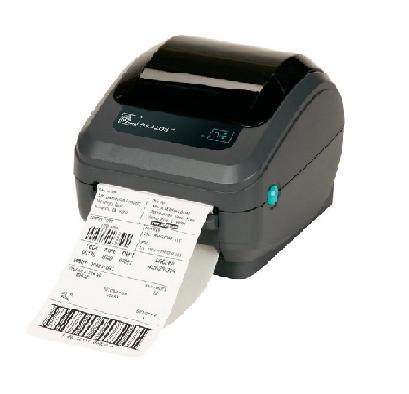

Zebra GK420d

Zebra’s G-Series compact desktop printers for print widths up to 4 inches deliver best-in-class speed and performance. From the basic GK™model to the feature-rich GX™model, the G-Series printers are reliable, durable, and flexible to fit almost any low- to mid-volume printing application.
Get a Quote >>
MFG Part #(s): GK42-202210-000, GK42-202211-000, GK42-202510-000, GK42-202511-000, GK42-202521-000

Availability: In Stock

Need repair? EXPRESS Repair Center for the Zebra GK420d click here.

Affordable coverage plans. Keep your Zebra GK420d running click here.

Looking for refurbished Zebra printers? click here.
Product Information

Overview

Zebra’s G-Series compact desktop printers for print widths up to 4 inches deliver best-in-class speed and performance. From the basic GK™model to the feature-rich GX™model, the G-Series printers are reliable, durable, and flexible to fit almost any low- to mid-volume printing application and budget.Built with Zebra durability and reliability, the G-Series GK model provides the best value of all basic desktop thermal printers, while the premier GX model supports a variety of industries and applications with the widest range of features.Choose the space-saving direct thermal version of either model for the smallest footprint of any 4-inch desktop printer, or the direct thermal/thermal transfer version to save users time with the easiest ribbon-loading system available.With both EPL™and ZPL® programming languages native on all models, G-Series printers fit in perfectly with other Zebra printers. And a variety of connectivity options makes them easy to integrate into existing local or networked systems. Zebra’s G-Series printers are a smart investment, and always a perfect fit.

Specifications

Resolution: 203 dpi (8 dots/mm)
Memory: Standard: 8 MB SDRAM (3 MB available to end user); 4 MB Flash (1.5 MB available to end user)
Print width: 4.09″ (104 mm)
Print length: 39″ (991 mm)
Print speed: 5″ (127 mm)/sec
Media sensors: Reflective, Transmissive

More Standard Features

Print speed: up to 5″ (127 mm) per second Print method: direct thermal/thermal transfer EPL and ZPL programming languages standard OpenACCESS design for easy media loading Smallest footprint in 4-inch thermal printer Dual-wall reinforced plastic construction 32 bit RISC processor XML-enabled printing

Printer Specifications

Resolution: 203 dpi (8 dots/mm) Memory: Standard: 8 MB SDRAM (3 MB available to end user); 4 MB Flash (1.5 MB available to end user) Print width: 4.09″ (104 mm) Print length: 39″ (991 mm) Print speed: 5″ (127 mm)/sec Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 4.25″ (108 mm) Minimum label and liner width: 0.75″ (19 mm) Maximum label and liner length: 0.38″ (9.7 mm) to 39″ (991 mm) Maximum roll diameter: 5″ (127 mm) Core diameter: 0.5″ (12.7 mm), 1.0″ (25.4 mm), 1.5″ (37.1 mm) Media thickness: 0.003″ (0.08 mm) to 0.0075″ (0.20 mm) Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock

Operating Characteristics

Operating temperature DT: Operating temperature: 40° F (5° C) to 105° F (41° C) Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C) Operating humidity: 10-90% non-condensing Storage humidity: 5-95% non-condensing Electrical: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz
Agency approvals
  • FCC Part 15
  • Subpart 15
  • VCCI
  • C-Tick
  • EN55022 Class-B
  • EN6100-3-2
  • EN6100-3-3
  • EN55024
  • CCC
  • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
  • TUV NRTL
  • IRAM
  • NOM
  • AAMI

Physical Characteristics

Width: 6.75″ (171 mm) Height: 6″ (152 mm) Depth: 8.25″ (209 mm) Weight: 3.1 lbs (1.4 kg) Shipping weight: 7.1 lbs (3.2 kg) Orientation Center

Related Products

Options
  • 10/100 internal Ethernet connectivity
  • Dispenser – label peel and present with present sensor
  • Asian font sets
Communication and Interface Capabilities
  • Auto-sensing Serial RS-232 (DB-9)
  • USB V1.1, bi-directional
  • Centronics Parallel
  • 10/100 internal Ethernet (replaces parallel port)

Programming Languages

Core programming languages: EPL2, Line Mode, ZPL I/ZPL II

Bar Codes/Symbologies

Linear Codabar Code 11 Code 128 Code 128 with subsets A/B/C Code 39 Code 93 EAN-13 EAN-14 EAN-8 EAN-8 and EAN-13 with 2 or 5 digit extensions German Post Code Industrial 2-of-5 Interleaved 2-of-5 Japanese Postnet Logmars MSI MSI-3 Plessey Postnet RSS (reduced space symbology) Standard 2-of-5 UCC/EAN-128 UPC and EAN 2 or 5 digit extensions UPC-A UPC-A and UPC-E with 2 or 5 digit extensions UPC-A and UPC-E with EAN 2 or 5 digit extensions UPC-E 2-dimensional Aztec Codablock Code 49 Data Matrix MacroPDF417 MaxiCode MicroPDF417 PDF417 QR Code RSS / GS1 DataBar family (12 barcodes) Fonts and Graphics
  • 16 resident expandable ZPL II bitmap fonts
  • One resident scalable ZPL font
  • Five resident expandable EPL2 bitmap fonts
  • Supports user-defined fonts and graphics – including customer logos
*Specifications are subject to change without notice
