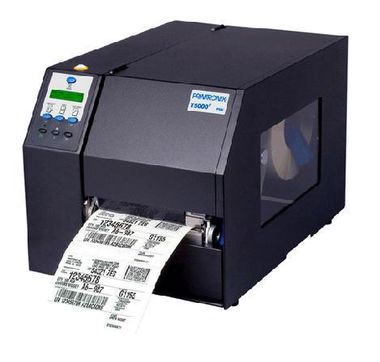

Printronix T5306r

Printronix T5306R

(End of Life)

Based on the 5r Multi-Technology Platform, the ThermaLine™ T5306r™ ENERGY STAR® family is an industrial thermal bar code printer designed to operate in challenging environments. Through leadership by design, the T5306r combines reliability, utility, power and flexibility for demanding environments and provides the open migration to RFID for future requirements.
Go To Replacement Product >>
Availability: End of Life Product
manufacturer warranty
overnight shipping
Product Information

Overview

Based on the 5r Multi-Technology Platform, the ThermaLine™ T5000r™ ENERGY STAR® family is an industrial thermal bar code printer designed to operate in challenging environments. Through leadership by design, the T5000r combines reliability, utility, power and flexibility for demanding environments and provides the open migration to RFID for future requirements. The T5000r supports the widest range of connectivity and control without sacrificing performance and provides the ability to meet new application and compliance requirements.

The T5000r integrates real world experience that readily adapts to emerging standards. The T5000r firmware can be upgraded to keep pace with new thermal bar code printing innovations and applications.

Specifications

6″ print width
300 dpi resolution
8 IPS print speed
Thermal transfer or direct thermal
64MB DRAM
16MB Flash
Roll or Fanfold
Ehternet RS232 Serial

Memory

DRAM 64MB standard Flash 16MB standard Printing Characteristics

Print Speed:
  • T5204r-4”: 10 IPS @ 203 dpi (254mm/sec)
  • T5304r-4”: 8 IPS @ 300 dpi (203mm/sec)
  • T5206r-6”: 10 IPS @ 203 dpi (254mm/sec)
  • T5306r-6”: 8 IPS @ 300 dpi (203mm/sec)
  • T5208r-8”: 8 IPS @ 203 dpi (203mm/sec)
  • T5308r-8”: 6 IPS @ 300 dpi (152mm/sec)
Printing Methods
  • Thermal transfer or direct thermal
Resolution
  • 203/300 dpi (operator interchangeable)
  • Printable Width
  • 4.1” max (104mm) (T5204r/T5304r)
  • 6.6” max (168mm) (T5206r/T5306r)
  • 8.5” max (216mm) (T5208r/T5308r)

Media Compatibility

Media Types
  • Roll or fanfold
  • Labels, tags and tickets
  • Paper, film or synthetic stock
  • Thermal Transfer or Direct Thermal
Media Width
  • 1.0” to 4.5” (T5204r/T5304r)
  • 2.0” to 6.8” (T5206r/T5306r)
  • 3.0” to 8.75” (T5208r/T5308r)
Media Thickness
  • 0.0025” to 0.010”
Roll Core Diameter
  • 3.0” (7.6 cm)
Maximum Roll Diameter
  • 8.0” (20.9 cm)
Thermal Transfer Ribbon Ribbon Width (min/max)
  • 1.0” to 4.33” (T5204r/T5304r)
  • 2.0” to 6.8” (T5206r/T5306r)
  • 3.0” to 8.75” (T5208r/T5308r)
Maximum Ribbon Length
  • 625m

Media Handling Characteristics

Tear-Off
  • Individual label tear-off
Tear-Off Strip
  • Label strips tear-off
Continuous
  • Labels print continuously
Cut
  • Label cut to length
Peel-Off
  • Label peel and present (peel-off mode requires rewind option)

Media Handling Characteristics

Rewinder
  • Required for peel and present. Not recommended for batch rewind of RFID labels
Cutter Kit
  • Cuts labels after printing specified number of labels. Not recommended for RFID labels

Operator Controls & Indicators

Operator Controls
  • Off Line-On Line, Test Print, Job Select, Form Feed Menu, Cancel, Enter
Message Display
  • 32 character
Indicators
  • Off Line-On Line, Menu

Bar Code Validation

Optional
  • Online Data Validation (ODV) – verifies bar code quality, overstrikes failed bar codes, and reprints a label Compatible with RFID encoding

Programming Languages

Standard
  • Printronix Graphics Language (PGL)† Zebra Graphics Language (ZGL)† TEC Graphics Language (TGL) Intermec Graphics Language (IGL) Sato Graphics Language (STGL)† Datamax Graphics Language (DGL) IER Siège® Graphic Language (IEGL) Monarch Graphic Language (MGL) XML – Extensible Mark-up Language

Bar Code Validation

Optional
  • IPDS over Ethernet, Twinax or Coax

Protocols

Optional
  • Telnet TN5250/TN3270

Bar Code Symbologies Available

AUSTPORT, Aztec, BC35, BC412, CODABAR, Code 11, Code 35, Code 39, Code 93, Code 128 (A,B,C), EAN8, EAN13, FIM, I-2/5, German I-2/5, GS1-128, GS1-Databar, GS1-DATAMATRIX, IMB, Interleaved 2/5, ITF14, Matrix, MAXICODE, MSI, PDF417, PLANET, PLESSEY, POSTNET, POSTBAR, ROYALBAR, TELEPEN, UPC-A, UPC-E, UPC-E0, UPCSHIP, UPS11

Sensing Methods

Transmissive, Reflective (Gap, Mark, Notch, Continuous Sensing Form)

Interfaces

Standard
  • Ethernet (supports PrintNet Enterprise and PXML) RS232 Serial IEEE 1284 (Centronics) USB 2.0
Optional
  • Wireless (802.11b/g, 54mbps)†† 128bit WEP WPA-PSK / TKIP (Personal) WPA2-PSK / AES CCMP (Personal/Enterprise) PEAPv0 MSCHAPv2, LEAP, TTLS (supports PrintNet Enterprise and PXML) Coax/Twinax GPIO (General Purpose Input/Output)

Fonts, Graphics Support, Windows Drivers

Fonts
  • OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate, CG Triumvirate Bold, CG Triumvirate Bold Condensed
Character Set
  • Unicode with TrueType font support
Graphic Support
  • PCX, BMP and TIFF file formats
Windows Drivers
  • Microsoft Windows NT/2000/XP/Vista/7

Electrical Requirements

Line Input
  • 90-264 VAC (48-62Hz) PFC
Power Consumption
  • 150 watts (typical)
Regulatory Compliance
  • IEC60950-2, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B

Environmental Factors

Operating Temperature
  • 5°C to 40°C
Dimensions
  • 11.7” W x 20.5” L x 13.0” H (T5204r/T5304r)
  • 13.4” W x 20.5” L x 13.0” H (T5206r/T5306r)
  • 15.4” W x 20.5” L x 13.0” H (T5208r/T5308r)
Printer Weight/Shipping Weight
  • 37lbs/46lbs (T5204r/T5304r)
  • 40lbs/49lbs (T5206r/T5306r)
  • 43lbs/52lbs (T5208r/T5308r)
*Specifications are subject to change without notice
