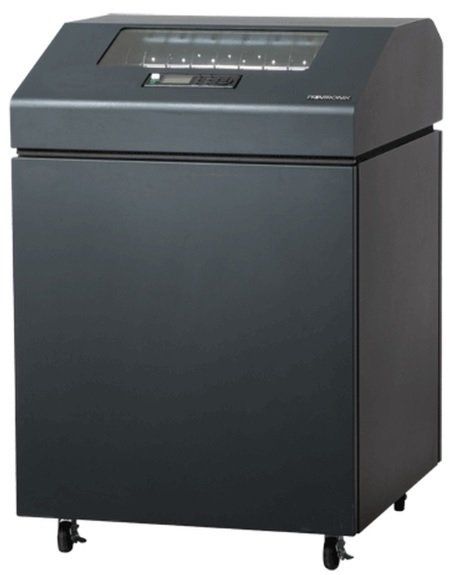

Printronix P8210

Printronix P8210

Printronix introduces design enhancements and improved functionality with the Printronix P8210 Cartridge Printer series to achieve the broadest flexibility, greatest compatibility and lowest ownership cost of virtually any other print technology. The series builds upon the workhorse tradition of all Printronix line matrix technology delivering maximum uptime, low cost of ownership, and reliable performance. The Printronix P8210 series is the ideal solution for buyers looking to minimize operating expense without sacrificing output reliability, regardless of operating environment.
Get a Quote >>
Availability: Call for availability
Ask About Trading In Your Old Printers!
manufacturer warranty
try it before you buy it
Product Information

Overview

Printronix introduces design enhancements and improved functionality with the Printronix P8210 Cartridge Printer series to achieve the broadest flexibility, greatest compatibility and lowest ownership cost of virtually any other print technology. The series builds upon the workhorse tradition of all Printronix line matrix technology delivering maximum uptime, low cost of ownership, and reliable performance. The Printronix P8210 series is the ideal solution for buyers looking to minimize operating expense without sacrificing output reliability, regardless of operating environment.

Specifications

Cabinet
Print speed max: 1000 lpm
Graphic speed max: 125 (3175) ipm
Paper feed speed: 20 (508) ips

Height

40.5″ (1028.7 mm)

Width

27″ (685.8 mm)

Depth

29″ (736.6 mm)

Weight

200 lbs (90.7 Kg)

Shipping Printer Weight

265 lbs (120.2 Kg)

Print Speed – LPM, uppercase/lowercase

High Speed: 1000/856 Data Processing: 750/600 Near Letter Quality: 400/306

Graphics Speed – Inches (mm) per minute

60 x 48 dpi: 125 (3175) 60 x 72 dpi: 83 (2108) 90 x 96 dpi: 42 (1067)

Paper Feed Speed – Inches (mm) per second

 20 (508)

Connectivity/Interfaces

Standard – USB 2.0 and Serial RS-232
Optional Ethernet – 10/100 Base T Parallel – IEEE-1284 Centronics

Character Pitch (Characters per inch)

10, 12, 13.3, 15, 16.7, 17.1, 20

Line Spacing (Lines per inch)

 6, 8, 10.3, n/72, n/216

Graphic Resolution

180 dpi Horizontal, 144 dpi Vertical (max)

Dot Size

 16.7 mil (.42mm)

Emulations

Standard LP+ (Printronix P-Series, P-Series XQ, Serial Matrix, IBM ProPrinter III XL, Epson FX-1050
Optional ANSI, IPDS, PCL 2, DEC LG, TN5250/TN3270, Graphics emulation PGL and VGL

Character Sets

99 plus character sets including ECMA Latin 1, DEC Multinational, IBM Code Page 437 and 850, OCR A, OCR B, UTF8 encoded Unicode

Character Styles

 Bold, italic, double wide, double high, overstrike, underline, subscript and superscript

Fonts

 NLQ Serif, NLQ Sans Serif, Data Processing, High Speed, OCR A, OCR B

Bar Codes

 30 resident symbologies, including Code 39, EAN 8/13, UPC A/E, Intelligent Mail, Postnet, Royal Mail, Interleaved 2 of 5, PDF 417, Data Matrix

Printer Software

 Printronix PrintNet Enterprise remote management software, SAP device support

Printer Drivers

Microsoft Window XP/Vista/2003/2008/7, Linux

Environmental Advantage

 ENERGY STAR qualified

Power Voltage

AC input range 100-240 VAC, 50/60 HZ

Power Consumption (Energy Star)

 Less than 5 watts

Power Consumption

P8005 / P8205 – 280 watts Max 320 watts
P8010 / P8210 – 300 watts Max 320 watts
P8215 – 435 watts Max 601 watts
P8220 – 450 watts Max 601 watts

Operating Temperature

Environmental Operating Temperature 50° to 104° F, 10° to 40° C

Paper Type

 Continuous, fan folded, edge-perforation

Print Width

13.6″ (345mm)

Media Width

 3″ (76mm) to 17″ (432mm)

Media Copies

 Up to 6 parts; up to 4 parts for Zero Tear models

Media Weight

15* to 100 lbs up to 0.025″ thickness
56 to 163 gm/m2 up to 0.64mm thickness
*(18 lbs minimum weight on Zero Tear model)

MTBF

 10,000 hours at 25% duty cycle and 25% page density

Consumable Ribbons (Typical)

Standard Life Cartridge Ribbon – 17,000 pages
Extended Life Cartridge Ribbon – 30,000 pages
Page yield based on ISO LSA Page, 8.5″ x 11″ letter-size, approximately 5% coverage
*Specifications are subject to change without notice
